LogiCO2 MK90 Stand-Alone CO2 Safety System Kit with Horn & Strobe LED - 0-5% Detection for Cold Rooms & Confined Spaces
LogiCO2 MK90 Stand-Alone CO2 Safety System Kit with Horn & Strobe LED - 0-5% Detection for Cold Rooms & Confined Spaces
- This stand-alone unit is the most cost-effective way to detect and alert of dangerous CO2 leakages. Comes complete with all parts for easy installation.
- CO2 monitor with integrated sound and light alarm indication, designed to measure CO2 concentration in a confined space environment. It provides an alarm in the event that a CO2 level considered unhealthy/dangerous is reached, in accordance with existing safety codes, in the area being monitored.
- Translucent enclosure and functional design with high-intensity red alarm LEDs are some of the features of the MK90 CO2 Sensor.
- Perfect for coolers, backrooms, and any other spaces where CO2 is being stored.
- The alarm levels can be changed to any level to comply with all local Safety Codes and legislation.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The LogiCO2 Mk90 is the easiest and most cost effective way to detect and alert of dangerous CO2 leakages. It also inhibits lost revenue due to costly CO2 leaks. With easy installation, virtually zero maintenance and perfect functionality, the LogiCO2 Mk90 is the logical way of minimizing any CO2 risks for the working staff and customers 24/7.
The Mk90 CO2 Sensor is a Stand-Alone system that can be connected with the Mk9 Central Unit and Mk9 CO2 Sensor Set.
It is a CO2 monitor with integrated sound and light alarm indication, designed to measure CO2 concentration in a confined space environment. It provides an alarm in the event that a CO2 level considered unhealthy/dangerous is reached, in accordance with existing safety codes, in the area being monitored.

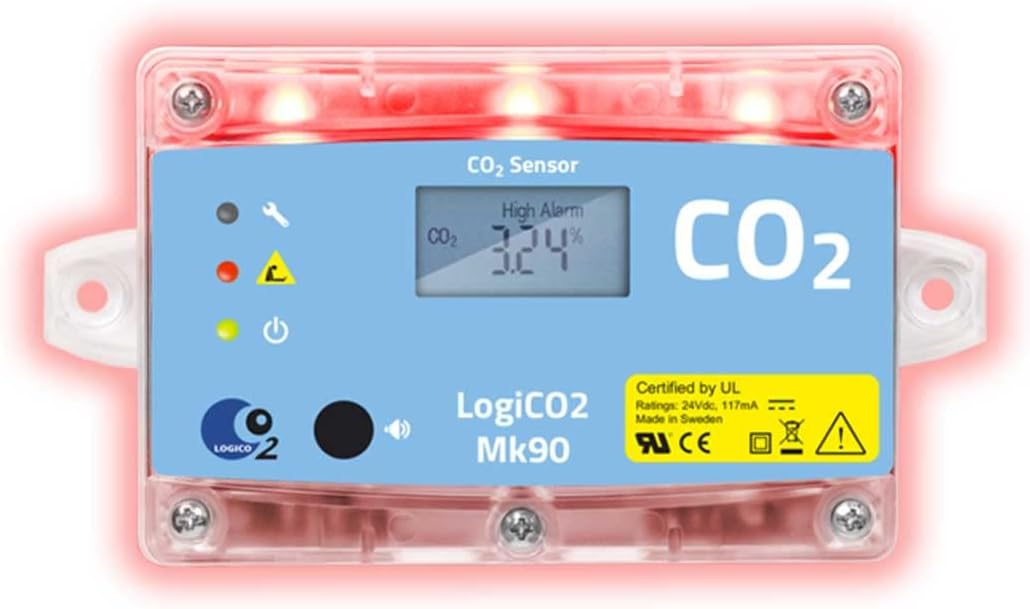

Translucent enclosure and functional design with high intensity red alarm LEDs are some of the features of the MK90 CO2 Sensor. The display alternates between actual CO2 concentration (0.0%- 6,7%), TWA (ppm) and temperature (°C or °F), (if temperature alarm is activated for cold room applications).

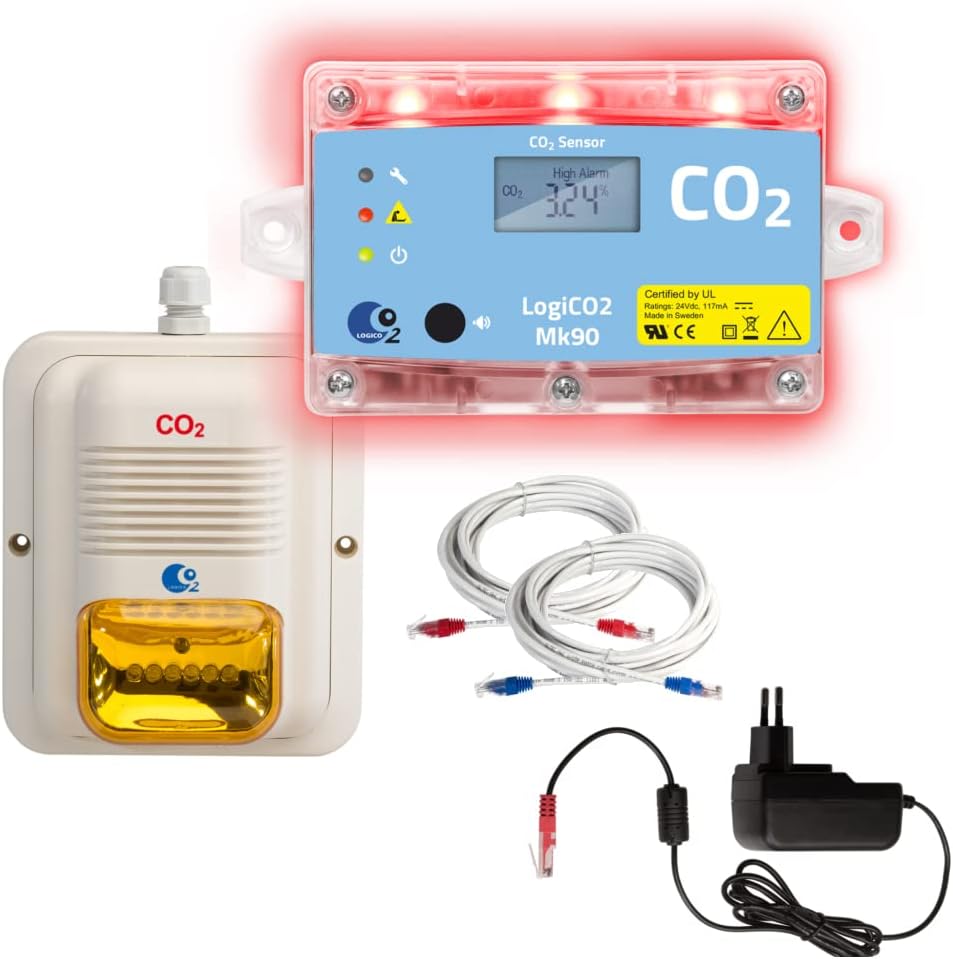

This complete plug and play SET contains a Mk90 CO2 Sensor with display, a Horn/strobe, cabling and signage. The Mk90 CO2 Stand-Alone SET, provides a sophisticated and powerful CO2 Safety System while still being the most economical and easiest system on the market. All LogiCO2 sensors have automatically calibration as standard. The alarm levels can be changed to any level to comply with all local Safety Codes and legislation.
The default alarm levels are:
– 5000 ppm Awareness Alert
– 5000 ppm TWA 8Hr (PEL)
– 1,5% (15.000 ppm) ½ STEL
– 3,0% (30.000 ppm) STEL
Technical Specifications & Kit Includes:
| Specification | Details |
|---|---|
| Product Model | LogiCO2 Mk90 (Latest Generation) |
| Detection Principle | Non-Dispersive Infrared (NDIR) |
| System Type | Stand-Alone Sensor (Integrated Alarm) |
| Target Applications | Cold-rooms, Confined Spaces, Beverage Storage |
| Alarm Hardware | Integrated High-Decibel Horn & Optical Strobe LED |
| Connectivity | Plug-and-Play (Includes all necessary cables) |
| Compliance Ready | Designed for OSHA/Confined Space Safety Standards |
What's Included in the Kit:
- MK90 Stand-Alone Detector: Precision CO2 sensor with local display.
- Horn/Strobe LED: Remote optical and acoustical alert unit.
- Wiring Harness: All necessary power and communication cables.
- Mounting Hardware: Screws and plugs for wall mounting. The sensor mounts no more than 12 in (30 cm) above the floor.
- Warning Signage: Mandatory safety signs for entry points.
- Power Supply: Universal cable with multi-region plug-in adapters.
NOTE: Always perform a functional test BEFORE permanent installation. Be advised that the unit emits a very loud acoustical alarm during testing and operation.
Downloads
More from LogiCO2
Shop all LogiCO2 →Recently viewed
Searches related to this
Frequently asked questions
How is this stand-alone kit different from a system with a central unit?
The MK90 sensor combines CO2 measurement with its own sound and light alarm, so it works without a central unit. LogiCO2 states that the stand-alone sensor can also be connected with its central unit and sensor set.
Where should the sensor and the horn/strobe be mounted?
LogiCO2's manual puts the sensor no more than 12 in (30 cm) above the floor and within 5 m (16.4 ft) of the CO2 distribution point. The horn/strobe mounts 80 to 96 in (2 to 2.4 m) above the floor, clearly visible from any entrance.
Can it be used in a walk-in cooler?
LogiCO2 lists the sensor's operating range as 0 to +45°C (32 to 113°F), indoor use only, and the sensor has a temperature alarm that can be activated for cold room applications. Rooms that run below 0°C (32°F) are outside the listed range.
What are the factory alarm levels, and can they be changed?
The defaults are a 5,000 ppm awareness alert, a 5,000 ppm 8-hour TWA alarm, a 1.5% low alarm and a 3.0% high alarm. LogiCO2 states the levels can be changed to comply with local safety codes.
Does the sensor need calibration or regular testing?
The sensor has an automatic self-calibration feature. LogiCO2 recommends that a qualified service agent carry out a function check of the system at least once a year.
