Glycol Beer Chiller - UBC ChillPro 7500 Power Pack, 3/4 HP 1-Pump 7,500 BTU Commercial Long-Draw Draft

Ask a question Item # 19U07109 Only 6 left

Glycol Beer Chiller - UBC ChillPro 7500 Power Pack, 3/4 HP 1-Pump 7,500 BTU Commercial Long-Draw Draft

Only 6 left in stock
$482599
30-day returns · Easy with prepaid labels provided
Available to ship from
✓Colorado✓Kansas
  • 7,500 BTU/h cooling capacity at a 20°F evaporator temperature, using R290 refrigerant.
  • One vane pump installed (1/3 hp motor, 80 GPH); UBC lists one additional pump.
  • 208-230 V, 60 Hz, NEMA 6-20P plug, 20 A dedicated circuit; 10.0 A running with one pump.
  • 18-gallon glycol tank with 3/8 in. barbed inlet and outlet.
  • Needs 12 in. of clearance on all sides and a 60 to 90°F room.

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon-Fri 8:30-5 CT
(888) 964-4239 Chat with a tech

Request a quote

Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

Request a quote

This power pack puts a single vane pump on a 7,500 BTU/h chiller. UBC's specification sheet lists one pump pre-installed and one additional.

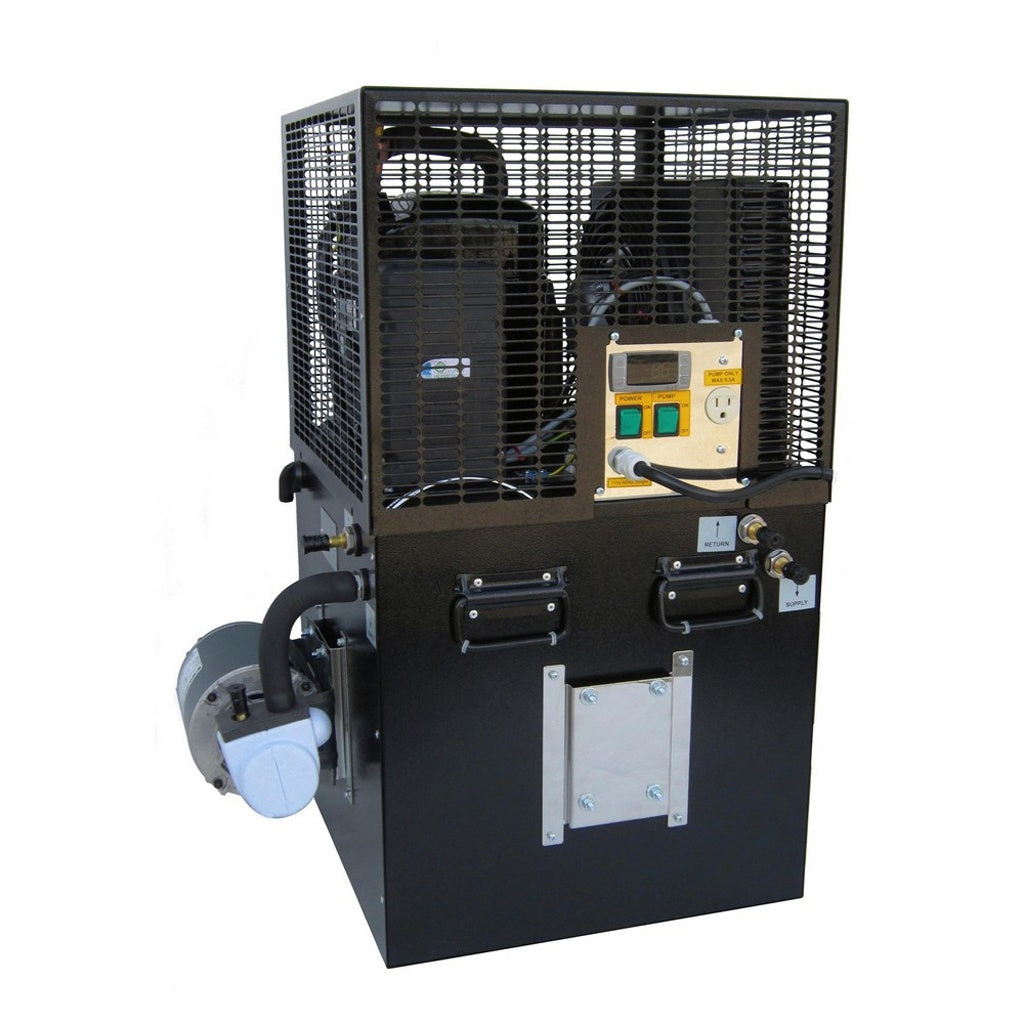

The UBC ChillPro 7500 circulates chilled glycol through the trunk line, where it travels beside the beer lines and then returns to the bath. Draft systems with a remote keg cooler rely on that loop to stop beer warming up on its way to the faucet. This listing is the one-pump version of the ChillPro 7500. The same chiller is also made with two pumps installed, so check the pump count before you order.

Features

  • One vane pump installed, driven by a 1/3 hp motor and moving 80 GPH of glycol.
  • UBC's specification sheet lists one additional pump.
  • 7,500 BTU/h of cooling capacity at a 20°F evaporator temperature.
  • 18-gallon glycol tank, so there is a large volume of cold glycol behind the pump.
  • Digital thermostat controls the bath temperature.
  • Uses R290 refrigerant, with a 150 g (5.29 oz) charge, per UBC's specification sheet.
  • 3/8 in. barbed inlet and outlet for the glycol supply and return lines.

Specifications

Cooling capacity 7,500 BTU/h at 20°F evaporator temperature
Pumps installed 1 vane pump with 1/3 hp motor
Additional pumps 1
Pump flow 80 GPH
Glycol tank 18 gallons
Maximum tubing distance Up to 450 ft
Electrical 208-230 V, 60 Hz
Dedicated circuit 20 A
Running amperage 10.0 A with one pump
Plug and cord NEMA 6-20P, 6 ft cord
Refrigerant R290
Glycol connections 3/8 in. barb inlet and outlet
Dimensions (W x D x H) 28 x 23 x 30.5 in. (35.6 in. on legs)
Operating room temperature 60 to 90°F
Clearance 12 in. around the entire unit
Glycol mix 40% glycol, 60% water by volume

Compatibility

Plan the electrical first. The ChillPro 7500 needs a 208-230 V, 60 Hz supply on a 20 A dedicated circuit, with a receptacle that takes its NEMA 6-20P plug. The cord is 6 ft long. Leave at least 12 in. clear on every side and keep the room between 60 and 90°F. UBC specifies a bath of 40% glycol and 60% water by volume. Unsure whether one pump is enough for your layout? Talk to a specialist before you order.

Documents & Downloads

Searches related to this

Frequently asked questions

Can a second glycol pump be added to the one-pump ChillPro 7500 later?

UBC's specification sheet for the ChillPro 7500 lists one pre-installed pump and one additional pump. Each vane pump has a 1/3 hp motor and moves 80 GPH.

What outlet and circuit does the ChillPro 7500 need?

It runs on 208-230 V, 60 Hz and has a NEMA 6-20P plug on a 6 ft cord. UBC lists a 20 A dedicated circuit.

What are the dimensions of the chiller?

The cabinet is 28 in. wide and 23 in. deep. Height is 30.5 in., or 35.6 in. on its legs.

At what conditions is the 7,500 BTU/h rating given?

UBC states the 7,500 BTU/h capacity at an evaporator temperature of 20°F.

What size are the glycol line connections?

The glycol inlet and outlet are 3/8 in. barbs.
