Glycol Beer Chiller - UBC ChillPro 5500 Power Pack, 1/2 HP 2-Pump 5,500 BTU Long-Draw Draft System

Glycol Beer Chiller - UBC ChillPro 5500 Power Pack, 1/2 HP 2-Pump 5,500 BTU Long-Draw Draft System
- 5,500 BTU/h cooling capacity at a 20°F evaporator temperature.
- 115 V, 60 Hz. UBC lists a 20 A circuit for the one-pump unit and no figure for two pumps.
- Two vane pumps, each with a 1/3 hp motor and 80 GPH flow.
- 18-gallon tank; cabinet is 28 in. wide, 23 in. deep, 30.5 in. tall (35.6 in. on legs).
- UBC lists a maximum tubing distance of up to 450 ft; refrigerant is R290.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

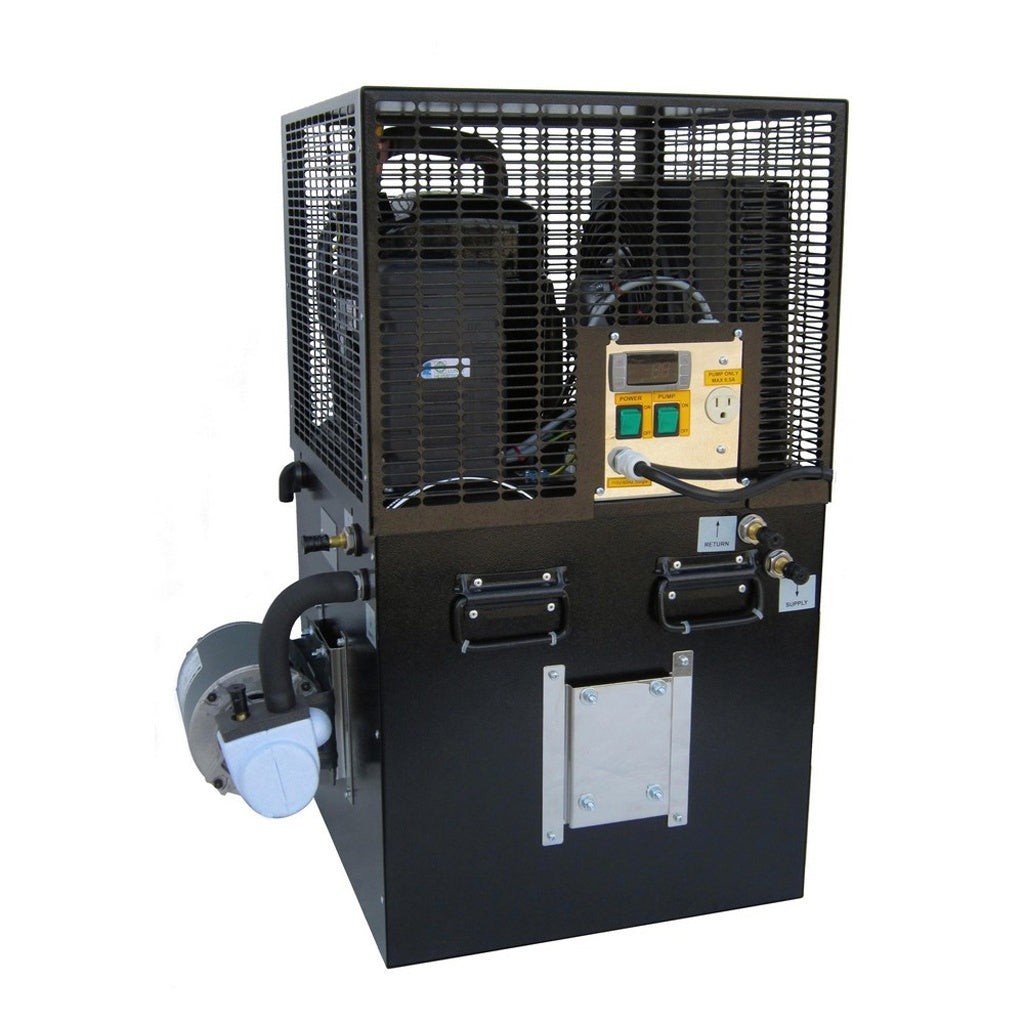

A 5,500 BTU/h glycol chiller that UBC builds for 115 V power, here with two glycol pumps installed.
The UBC ChillPro 5500 is the 5,500 BTU/h model in UBC's ChillPro line of glycol chillers for long-draw draft beer. It keeps an 18-gallon bath of glycol and water cold and pumps that mix out beside the beer lines and back again, so beer poured a long way from the keg cooler still arrives cold. This listing is the two-pump version.
Features
- Two vane pumps, each on its own 1/3 hp motor.
- 5,500 BTU/h cooling capacity, measured at a 20°F evaporator temperature.
- 115 V, 60 Hz power, per UBC's specification sheet for the ChillPro 5500.
- 18-gallon glycol tank cooled by a coil evaporator.
- Digital thermostat for setting the glycol temperature.
- R290 refrigerant, per UBC's specification sheet.
- Rated by UBC for a maximum tubing distance of up to 450 ft.
- 3/8 in. barbed glycol inlet and outlet.
Specifications
| Cooling capacity | 5,500 BTU/h at 20°F evaporator temperature |
|---|---|
| Pumps | 2 vane pumps, 1/3 hp motor each |
| Pump flow | 80 GPH |
| Glycol tank | 18 gallons |
| Maximum tubing distance | Up to 450 ft |
| Electrical | 115 V, 60 Hz |
| Circuit and plug | With one pump installed, UBC's sheet lists a 20 A dedicated circuit, 15.0 A running and a NEMA 5-20P plug on a 6 ft cord. UBC publishes no figure with two pumps running. |
| Refrigerant | R290 |
| Evaporator | Coil |
| Glycol connections | 3/8 in. barb inlet and outlet |
| Dimensions (W x D x H) | 28 x 23 x 30.5 in. (35.6 in. on legs) |
| Operating room temperature | 60 to 90°F |
| Clearance | 12 in. around the entire unit |
| Glycol mix | 40% glycol, 60% water by volume |
Compatibility
UBC's specification sheet lists a 20 A dedicated 115 V circuit and a NEMA 5-20P plug on a 6 ft cord for the ChillPro 5500 with one pump installed, at 15.0 A running. It gives no figure with both pumps running, so confirm the circuit for this two-pump version before you wire the outlet. Allow at least 12 in. of clearance around the whole unit and keep the room between 60 and 90°F. Fill the 18-gallon tank with a mix of 40% glycol and 60% water by volume, as UBC specifies. Line length, the number of towers and room temperature all change how much cooling a system needs. Talk to a specialist if you want help checking this model against your layout.
Documents & Downloads
More from UBC Group
Shop all UBC Group →Recently viewed
Searches related to this
Frequently asked questions
Does the ChillPro 5500 run on 115 V?
Yes. UBC's specification sheet lists 115 V, 60 Hz. With one pump installed it lists a NEMA 5-20P plug on a 6 ft cord, a 20 A dedicated circuit and 15.0 A running. UBC publishes no figure with two pumps running, so confirm the circuit for this version.
How many glycol pumps does this version have?
Two. UBC lists this version of the ChillPro 5500 with two vane pumps on 1/3 hp motors.
What is the longest run UBC lists for the ChillPro 5500?
UBC lists a maximum distance of up to 450 ft, with a capacity of 5,500 BTU/h at a 20°F evaporator temperature.
What goes in the glycol tank?
UBC specifies a mixture of 40% glycol and 60% water by volume. The tank holds 18 gallons.
Where can the chiller be installed?
UBC specifies an operating ambient temperature of 60 to 90°F and at least 12 in. of clearance around the entire unit. The cabinet measures 28 x 23 x 30.5 in., or 35.6 in. tall on legs.
