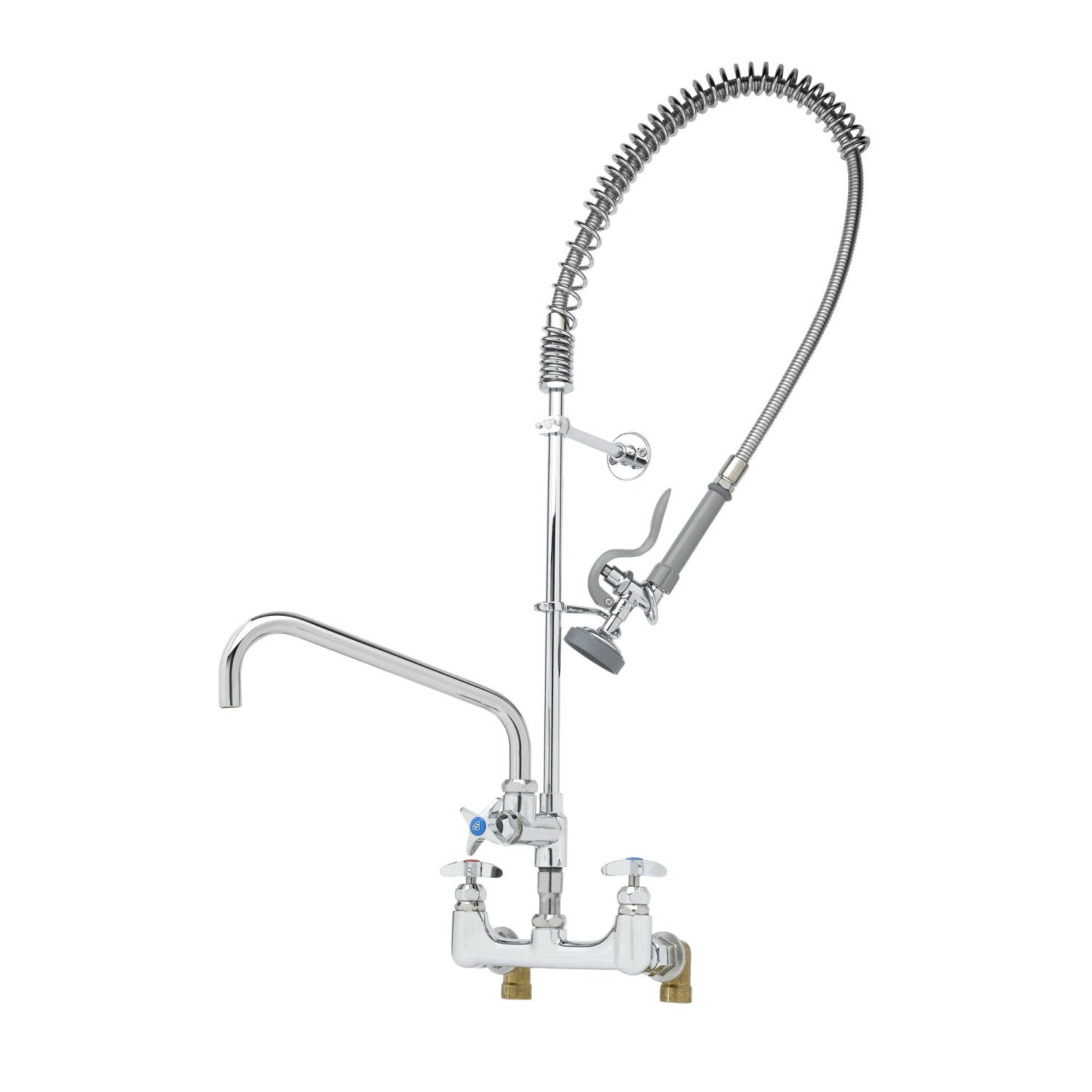

T&S Big-Flow Pre-Rinse Unit: 8" Wall Mount, 14" Nozzle, ADF, Spray Valve, Inlet Supply Nipples
Regular price
$841.22
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
- 1.15 GPM spray valve
- 14" Big-Flo plain end swing nozzle
- 18" riser
- 3/4" NPT female eccentric inlets with 2" flanges
- 3/4" NPT female inlet elbows & 3/4" NPT male inlets
- 4-arm handles with color coded indexes
- 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 6" adjustable wall bracket
- 8" wall mount Big-Flo mixing faucet with polished chrome plated brass body
- Adjustable centers from 7 3/4" to 8 1/4"
- Big-Flo compression spindles
- Check valves in body to prevent cross flow of water
- EasyInstall add-on Big-Flo faucet with polished chrome plated brass body
- Material: Polished chrome plated brass body, add-on faucet body, tubular spout, riser & spray valve body, stainless steel hose, and chrome plated metal handles
Product Description
⌄8" wall mount large flow mixing faucet with polished chrome plated brass body, add-on faucet with compression spindle and 4-arm handle, 14" plain end swing nozzle, 18" riser, 44" flexible stainless steel hosewith heat resistant handle, 1.15 GPM spray valve, compression spindles, 4-arm handles, 3/4" male inlets, check valves in body, spray valve holder,6" adjustable wall bracket and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
- Body: 8 in Centers (203.2 mm)
- Body Mount: Wall
- Cartridge-Spindle: Compression
- Feature: 6 in Wall Bracket (152.4 mm)
- Feature: Big-Flo
- Feature: Check Valve
- Finish: Polished Chrome
- Handle: 4-Arm (Cross)
- Inlet: 3/4 in NPT Female
- Inlet: Adjustable Centers
- Inlet: Inlet Elbow
- Material: Brass Construction
- Nozzle: 14 in (355.6 mm)
- Nozzle: Add-On Nozzle
- Nozzle: Nozzle
- Nozzle: Swivel
- Nozzle Flow: 29.55 GPM (111.85 L/min)
- Nozzle Outlet Type: Plain End
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Spray Valve: B-0107 (1.15 GPM) (4.35 L/min)
- Spray Valve Flow: 1.15 GPM (4.35 L/min)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
