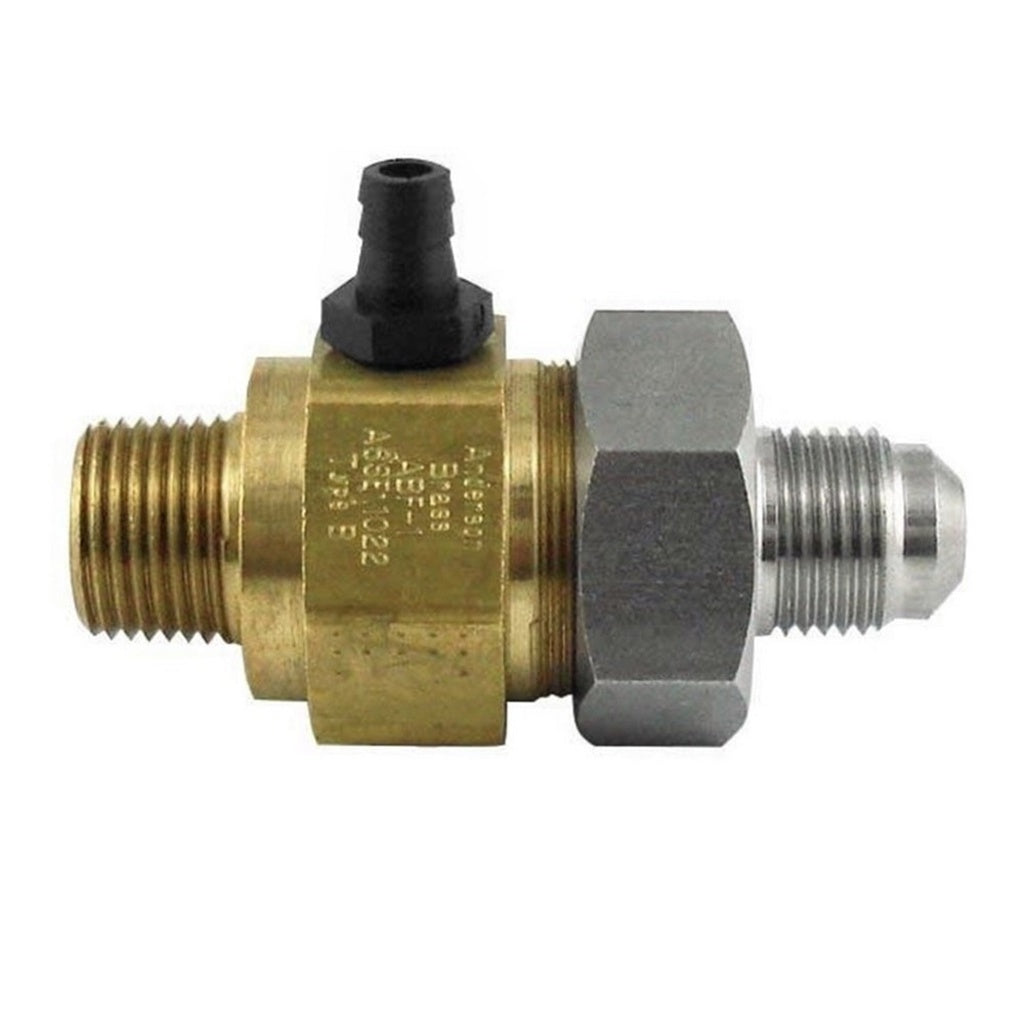

Taprite ASSE 1022 Vented Backflow Preventer - 3/8" MPT x 3/8" MFL x 1/4" Barb - NSF Certified

In stock
Item: 09T07105
$28.38
53% OFF $60.84 $28.38
| or |
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back. Create a Free HowdyPro account
Express Options Available at Checkout
Express Checkout Logos
Sales Support Image

Call for Help & Best Pricing!

Speak with a real person based in San Antonio, TX!

888-964-4239 Live Chat

Quick Overview

  • Compliance: ASSE 1022 Certified and NSF/ANSI 18 & 61 compliant.
  • Connections: 3/8" MPT Inlet x 3/8" MFL Outlet.
  • Vent Port: 1/4" Hose Barb for atmospheric venting.
  • Function: Dual-check protection against CO2 and carbonated water backflow.
  • Material: Lead-free, corrosion-resistant internal components.
  • Pressure Rating: Rated for standard commercial water supply pressures.
  • Application: Mandatory for soda fountains, post-mix dispensers, and carbonators.
NSF Certified

Product Description

⌄

The Taprite Vented Backflow Preventer is an essential safety device engineered for carbonated beverage dispensing systems. Certified to ASSE 1022 and NSF standards, this dual-check valve with an atmospheric vent is designed to protect the potable water supply from the back-pressure of CO2 and carbonated water. By providing a physical air gap through its 1/4" barb vent, it ensures that even in a check-valve failure, carbonated liquids are exhausted safely rather than migrating back into your facility’s plumbing.

Constructed from high-strength, lead-free materials, this backflow preventer is built to handle the rigorous demands of commercial soda fountains. It features a 3/8" MPT (Male Pipe Thread) inlet and a 3/8" MFL (Male Flare) outlet, making it compatible with standard high-pressure braided hoses and regulator sets. In many regions, installation of an ASSE 1022 device is a mandatory requirement for passing health and fire inspections in any establishment serving carbonated beverages.

Why Compliance Matters: When CO2 gas or carbonated water comes into contact with copper water pipes, it creates a chemical reaction that leaches copper into the water stream, potentially leading to "copper poisoning" for customers. The Taprite ASSE 1022 valve is your primary defense against this risk. It is a "non-repairable" safety device, meaning if the atmospheric vent begins to leak water, the unit has successfully performed its job of stopping backflow and must be replaced immediately to maintain system safety.

Installation Requirement: Per ASSE 1022 standards, a Y-Strainer (minimum 100 mesh) should be installed upstream of this device to prevent sediment from fouling the check valves. Additionally, the 1/4" barb vent should be tubed to a visible floor drain so that any backflow discharge can be easily spotted by staff, signaling that the device requires replacement.
Feature Benefit
Atmospheric Vent Provides a visible signal of valve failure and protects water mains.
Standard MFL Fitting Easy connection to 3/8" flare beverage lines without specialized tools.
ASSE 1022 Stamp Simplifies health inspections and ensures legal safety compliance.
