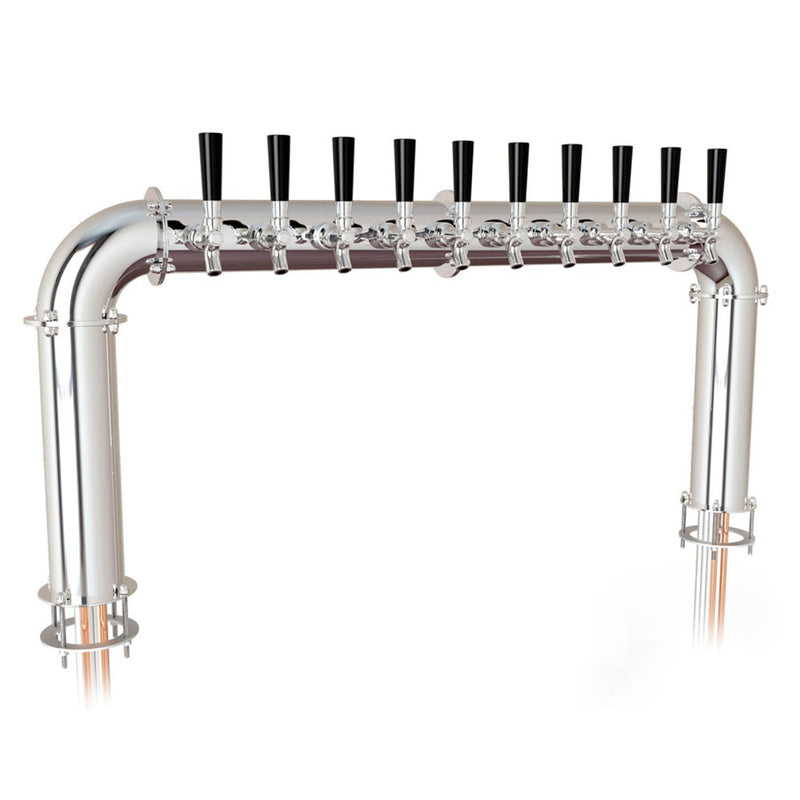

Imported Polished Stainless Steel Columns & Towers ALL 304 S/S FAUCETS SHANKS AND 3/16" PRODUCT LINES COOLTAP SHANK TECHNOLOGY Arcadia 10 Faucets Glycol Cooled

• 3-1/3" Diameter
• 18-1/2" Height
• 41-5/8" Width
• 7 Lbs. of restriction

Unlimited Faucets Available with Additional Support Legs Knobs Sold Separately All towers are manufactured of heavy gauge stainless steel and highly polished to mirror finish. Shanks bolt into large aluminum blocks with copper glycol lines passing through the blocks to insure optimal cooling. Beer lines and glycol lines are bundled together in an insulated foiled enclosure providing efficient convection cooling of beer lines. Thermo-seals are used to separate the cooling blocks from the body to ensure no condensation on the tower. 3/16" product lines are 304 grade S/S with 3/16" barbed ends extending out past bottom of tower (additional restriction will need to be applied). 3/8" copper glycol lines with 3/8" barbed ends extending out past bottom of tower for easy connection. Shanks and faucets are 304 grade S/S as well.
