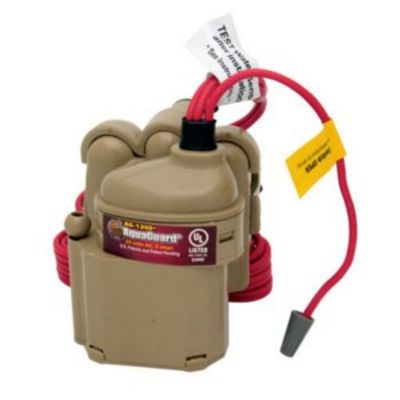

Aquaguard® Condensate Overflow Sensor 4" x 2.9" x 3" 24V Plastic 96106
Aquaguard® Condensate Overflow Sensor 4" x 2.9" x 3" 24V Plastic 96106
- 4" x 2.9" x 3" condensate overflow sensor
- Plastic construction
- 24V operation
- UL Listed and UL Recognized
- Genuine Aquaguard part 96106
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Aquaguard® 96106 is a 4" x 2.9" x 3" hvac plumbing fitting for condensate management and HVAC plumbing. RectorSeal® - 96106 - AG1200 Electronic Condensate Sensor
Specifications
| Size | 4" x 2.9" x 3" |
| Type | Magnetic float switch |
| Composition | Plastic |
| Connection Size | Clips to drain pan |
| Voltage | 24 VAC |
| For Use With | Metal/plastic secondary drain pans |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 6' |
| Maximum Amps Running | 5 |
| Plenum Rated | No |
| Switch Type | Megnetic Float |
| Wire Gauge | 18 AWG |
| Mounting Type | Secondary |
Aquaguard® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
