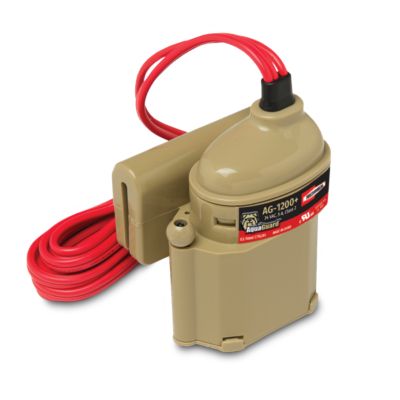

Aquaguard® Condensate Drain Switch 2 1/2" x 3.4" x 2.3" 24V Plastic 96100
Aquaguard® Condensate Drain Switch 2 1/2" x 3.4" x 2.3" 24V Plastic 96100
- 2 1/2" x 3.4" x 2.3" condensate drain switch
- Plastic construction
- 24V operation
- UL Listed and UL Recognized
- Genuine Aquaguard part 96100
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Aquaguard® 96100 is a 2 1/2" x 3.4" x 2.3" condensate drain switch for condensate management and HVAC plumbing. TRADEPRO® - 96100 - AG1100 Magnetic Float Switch
Specifications
| Size | 2 1/2" x 3.4" x 2.3" |
| Type | Magnetic Float Switch System |
| Composition | Plastic |
| Connection Size | Wire connection, 18AWG |
| Voltage | 24 VAC |
| For Use With | Residential and Commercial Applications, mounted to a metal secondary drain pan (without a lip) or a plastic secondary drain pan (with a lip) on condenstate drain lines |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 6' |
| Maximum Amps Running | 5 |
| Plenum Rated | No |
| Switch Type | Megnetic Float |
| Wire Gauge | 18 AWG |
| Mounting Type | Secondary |
Aquaguard® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
