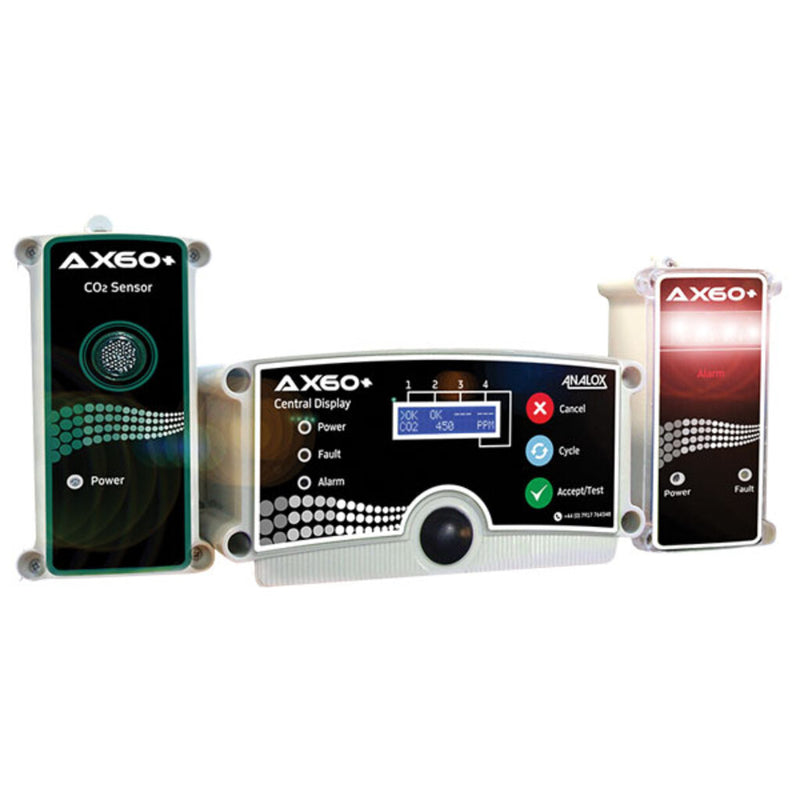

Analox Ax60+ CO2 Leak Detector Kit - NFPA/IFC/OSHA Compliant Wall-Mount Monitor
Analox Ax60+ CO2 Leak Detector Kit - NFPA/IFC/OSHA Compliant Wall-Mount Monitor
- Code Compliance: Meets all IFC, NFPA55, NBIC, OSHA, and CGA requirements for CO2 monitoring in confined spaces.
- System Logic: Includes Central Display Unit, internal CO2 sensor, and high-intensity strobe/audible alarm.
- Environmental Rating: Operating range of 23°F to 122°F; ideal for walk-in coolers and brewery cellar environments.
- Rapid Response: Under 30-second detection time with pre-configured TWA and threshold setpoints.
- Scalability: Expandable up to 4 sensors and 8 alarms to cover multi-tank or multi-room configurations.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Analox Ax60+ Commercial CO2 Leak Detection System
Code Compliance & Safety Requirements
For contractors managing draft beer or carbonation installs, the Analox Ax60+ provides an all-in-one solution to meet IFC, NFPA 55, NBIC, and OSHA safety mandates. It is specifically designed to protect personnel in confined spaces—such as walk-in coolers and storage rooms—where CO2 enrichment from leaks can occur. This unit is UL Approved and provides the necessary documentation to clear commercial fire inspections.
Field Installation & System Compatibility
The Ax60+ is a modular, wall-mountable system engineered for the high-moisture, harsh environments of breweries and restaurants. It features a Central Display Unit (CDU) for remote operation and control, allowing the tech to check levels outside the hazardous area. The system is 110V powered and provides a safe <24V output for the sensor network.
Advanced Tech Specs & Relay Logic
- Scalable Architecture: The system can be expanded to include up to 4 sensors and 8 alarms, making it compatible with large-scale multi-keg or multi-room facilities.
- Configurable Relays: Features relay 'failsafe options' for integration with building management systems (BMS), exhaust fans, or CO2 shut-off valves.
- Industrial Alarms: Equipped with high-visibility >100cd internal strobes and a minimum 80dbA audible alarm to ensure alerts are noticed in noisy mechanical rooms.
- Sensor Precision: Detects CO2 in a range of 0.1% to 5% with a response time of less than 30 seconds.
Unit Dimensions & Performance:
| Walk-in Cooler Sensor: | 2-7/8" x 6-5/8" x 3" |
| Strobe Repeater: | 2-7/8" x 6-5/8" x 1-3/4" |
| Operating Temp: | 23°F to 122°F |
| Input Power: | 100-200V |
Use Cases for the Service Tech
Whether retrofitting a restaurant for a Draft Beer System or installing a new brewery CO2 storage area, the Ax60+ is the industry standard. Its "out-of-the-box" readiness—pre-configured to 0.5% TWA and 1.5%/3.0% limits—minimizes time spent on field calibration and ensures the site is immediately compliant.
