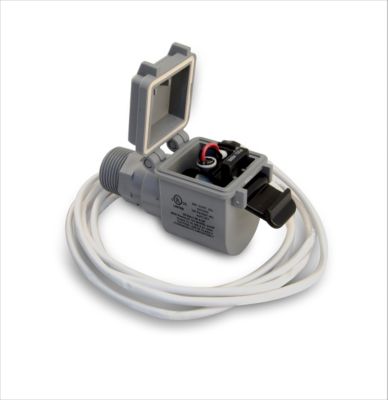

ALL-ACCESS® Condensate Drain Switch 3/4" Adapter 24V CPVC 83417
ALL-ACCESS® Condensate Drain Switch 3/4" Adapter 24V CPVC 83417
- 3/4" condensate drain switch
- CPVC construction
- 24V operation
- UL Listed and UL Recognized
- Genuine ALL-ACCESS part 83417
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The ALL-ACCESS® 83417 is a 3/4" Adapter condensate drain switch for condensate management and HVAC plumbing. Rectorseal® - 83417 - ALL-ACCESS® AA2P Plenum Rated Overflow Shut Off Float Switch
Specifications
| Size | 3/4" Adapter |
| Type | Plenum, Magnetic Reed |
| Composition | CPVC |
| Connection Size | 3/4" |
| Voltage | 24 VAC |
| For Use With | Primary Drain Pans |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 6' |
| Maximum Amps Running | 1.25 |
| Plenum Rated | Yes |
| Switch Type | Magnetic |
| Wire Gauge | 22 AWG |
| Mounting Type | Primary |
ALL-ACCESS® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
