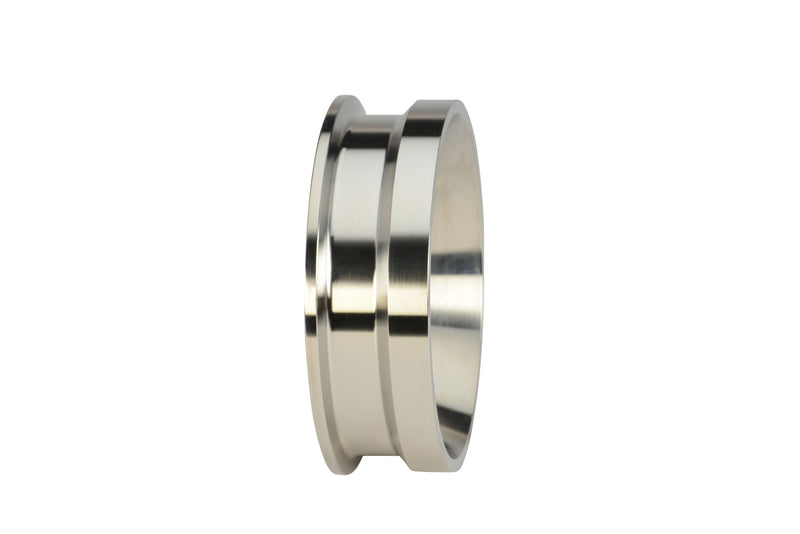

The Wayland Industries W619MPX-6 is a 6-inch tri-clamp x schedule 10 adapter machined from T316L low-carbon stainless steel. It bridges a sanitary tri-clamp connection on one side to a standard schedule 10 pipe weld on the other, the workhorse fitting in any sanitary process pipework where a brewery, distillery, or dairy needs to transition from clamp connections to welded pipe.

Why T316L Stainless

T316L is the standard for sanitary process work. The L (low carbon, less than 0.03 percent) eliminates carbide precipitation in the heat-affected zone of welds, which means it can be welded into a pipe spool without losing corrosion resistance. T316 adds molybdenum to the 304 base alloy, which is what gives it the ability to stand up to repeated CIP / SIP cycles, caustic and acid cleaning, and chloride exposure from sanitizers like StarSan.

Sizing

The 6 inch nominal designation refers to the schedule 10 pipe side. The tri-clamp side mates to standard 6 inch tri-clamp ferrules. Confirm the schedule 10 OD (6.625 inch, 0.134 inch wall) matches your existing pipe spec before ordering.

Application

Standard fitting for brewhouse transfer lines, fermenter manifolds, glycol headers, and CIP supply / return lines anywhere a tri-clamp connection needs to meet welded schedule 10 pipe. Pairs with standard 6 inch tri-clamp gaskets and clamps. Replacement gaskets and clamps available separately.
