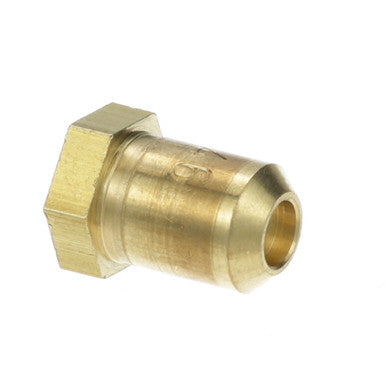

#46 Burner Orifice for Royal Range, Vulcan Hart, Garland – Replaces Royal Range 1121-46
$309
#46 Burner Orifice for Royal Range, Vulcan Hart, Garland – Replaces Royal Range 1121-46
On Sale
#46 Burner Orifice for Royal Range, Vulcan Hart, Garland – Replaces Royal Range 1121-46
In stock
$309$3.77Save $0.68
30-day returns · Easy with prepaid labels provided
Available to ship from
✓Illinois✓New Jersey✓Houston
Get it by 3–5 business days
As soon as tomorrow. Choose Next Day during checkout.
- Part type: Fastener
- Fits: Royal Range, Vulcan Hart, Garland
- Listed fitment: 169 listed models
- Replaces: Royal Range 1121-46
- Material: BRASS HOOD ORIFICE
- Orifice Size: #46
- Aftermarket replacement · ships fast · 30-day returns
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
All compatible models
128 models· 5 seriesVerify your unit's model number on the data plate matches one below before ordering.
Series:American RangeGarlandImperialRoyal RangeVulcan Hart
No matches. Try a partial model number or contact us with your serial number.
Don't see your model? Chat with us with your serial number and we'll confirm compatibility before you order.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The #46 Burner Orifice is a Mavrik aftermarket replacement part for Royal Range, Vulcan Hart, Garland, Imperial equipment, built to meet the original equipment specification. It is listed to fit 169 models across 5 manufacturers. Replaces Royal Range 1121-46 and 18 other OEM part numbers.
Manufacturer detail
Brass hood orifice, 3/8"-27 x 1/2" high x #46 Imperial broiler ICMA-24, ICMA-36, ICMA-48, ICMA-60, ICMA-72, ISB-24.
Specifications
| Material | BRASS HOOD ORIFICE |
|---|---|
| Orifice Size | #46 |
| Size | 1/2 high x #46 |
| Thread | 3/8 - 27 |
| Length (in) | 0.75 |
| Width (in) | 1 |
| Height (in) | 1 |
| Sold As | Each |
Fits these models
- American Range: ACCG, AEMG, ARCM, ARG, ARGB, ARRG, ARSM, ARSM-24
- Garland: G286, GF24, GF24-4L, GF24-4T, GF24-G24T, GF24-T, GF2G24T, GF36, GF36-4G12T, GF36-6R, GF36-6T, GF36-G36T and 32 more
- Imperial: IAB-24, IAB-30, IAB-36, IAB-48, IAB-60, IAB-72, IABFR, ICMA-24, ICMA-36, ICMA-48, ICMA-60, ICMA-72
- Royal Range: RCM-24, RCM-36, RCM-48, RCM-60, RCM-72, RR-10G12, RR-10G12-C, RR-2G12, RR-2G24, RR-2G24-C, RR-2G36, RR-2G36-C and 45 more
- Vulcan Hart: 12, 24S, 36C, 36S, 48C, 48S, 48SS, 60, 60CS, 60SC, 60SS, 72 and 36 more
Replaces these part numbers
- American Range: 11046, A29002
- Garland: M8-46, 1020846, 223242-46
- Glass Maid: 8-46
- Hobart: 719951-46, 719951-00046, 00-719951-00046
- Imperial: 2063, 1700-46
- Magikitch'n: 29-08-00322A, 2908-0032200, MK29-08-00322A, MK2908-0032200
- Royal Range: 1121-46
- Vulcan Hart: 719951-46, VH719951-46, 719951-00046, VH719951-00046, 00-719951-00046, VH00-719951-00046
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 169 models across 5 manufacturers — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
