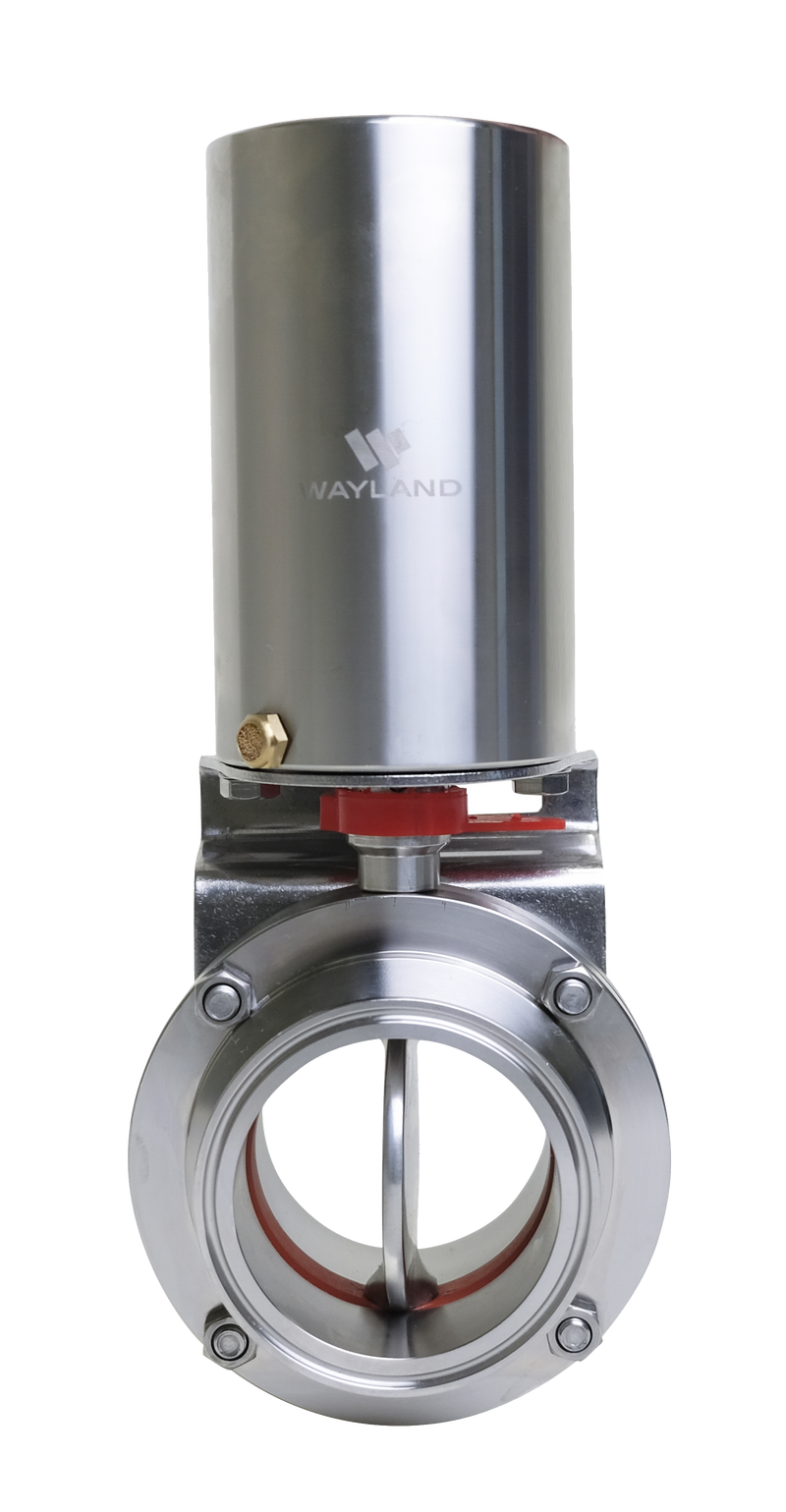

4" Tri-Clamp Butterfly Valve - Viton Seals & Spring-Return Actuator Normally Closed
$64329
4" Tri-Clamp Butterfly Valve - Viton Seals & Spring-Return Actuator Normally Closed
4" Tri-Clamp Butterfly Valve - Viton Seals & Spring-Return Actuator Normally Closed
In stock
$64329
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Size: 4" Tri-Clamp (TC).
- Actuator: Spring-Return Vertical (Normally Closed).
- Seals: High-Temperature Viton (FKM).
- Material: 304 Stainless Steel.
- Application: Large-scale automated flow control.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Wayland Industries 4" Butterfly Valve with Spring-Return Actuator is a heavy-duty sanitary component for automated large-scale brewery and food processing systems. This massive 4-inch valve features a vertical pneumatic canister that is Normally Closed (NC), providing a critical fail-safe that automatically shuts the valve if air pressure is lost. Constructed from 304 stainless steel with high-temperature Viton (FKM) seals, it offers superior resistance to oils and high-heat chemicals.
Technician's Note: This pneumatic valve requires a clean, regulated air supply (approx. 80-100 PSI) and a pilot solenoid for operation. Due to the size of the 4" disc, ensure the line is depressurized before manual overrides to prevent seal damage. The Viton seals are ideal for high-temp wort or fatty liquid food products.
