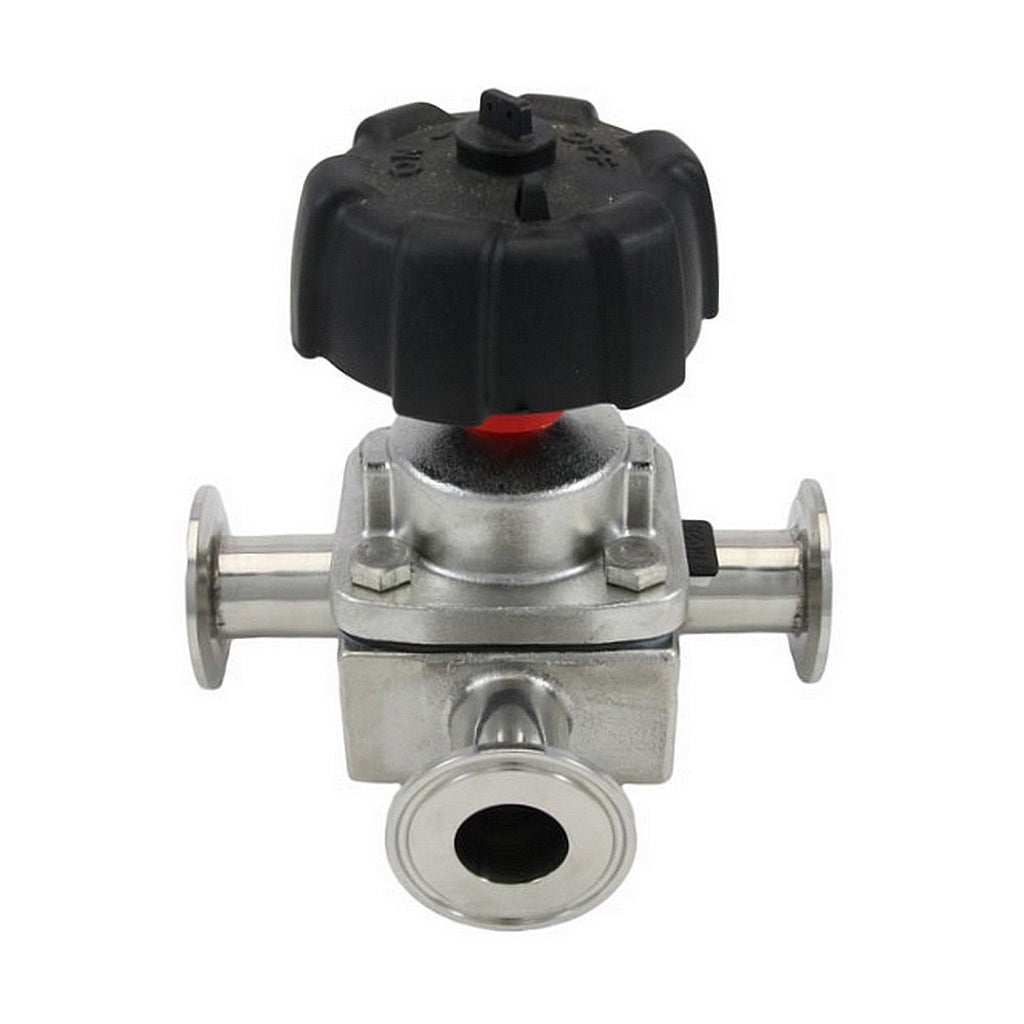

1" Tri-Clamp 3-Way Sanitary Diaphragm Valve for Brewery Process
$23463
1" Tri-Clamp 3-Way Sanitary Diaphragm Valve for Brewery Process
On Sale
1" Tri-Clamp 3-Way Sanitary Diaphragm Valve for Brewery Process
In stock
$23463$293.29Save $58.66
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Port Size: 1" Tri-Clamp (Tri-Clover)
- Configuration: 3-way (T-port flow diversion)
- Valve Type: Sanitary diaphragm
- Body Material: 316L stainless steel [INFERRED, confirm body grade]
- Diaphragm Material: EPDM [INFERRED, confirm elastomer]
- Application: Beer transfer, fermenter outlets, CIP-compatible process lines
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
A sanitary 3-way diaphragm valve with 1" Tri-Clamp (Tri-Clover) connections, built for brewery process applications where dead space is the enemy. Diaphragm valves seal against a flexible membrane rather than a wetted ball or seat, eliminating crevices where wort residue or yeast can hide. The 3-way configuration lets you divert flow between two outlets (transfer line vs. CIP return, fermenter vs. brite tank, etc.) with one valve instead of two T-junctioned ball valves.
Technician's Note: Diaphragm valves are the right call any place you'll be running CIP (caustic and acid cycles) regularly. Ball valves develop weep paths around the seat over time as the PTFE seals erode, while diaphragms are a single replaceable wetted part. Inspect the diaphragm every 6 months under heavy use; cracking or hardening means it's time for replacement before it fails mid-transfer. Tri-Clamp gaskets should match the diaphragm material (EPDM with EPDM, Viton with Viton), since mismatched elastomers age at different rates and one will fail first.
