240V/1,000W 18 3/4 in x 10 1/2 in Heating Element - Replaces Delfield 0156200
240V/1,000W 18 3/4 in x 10 1/2 in Heating Element - Replaces Delfield 0156200
- Width (in.): 11
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

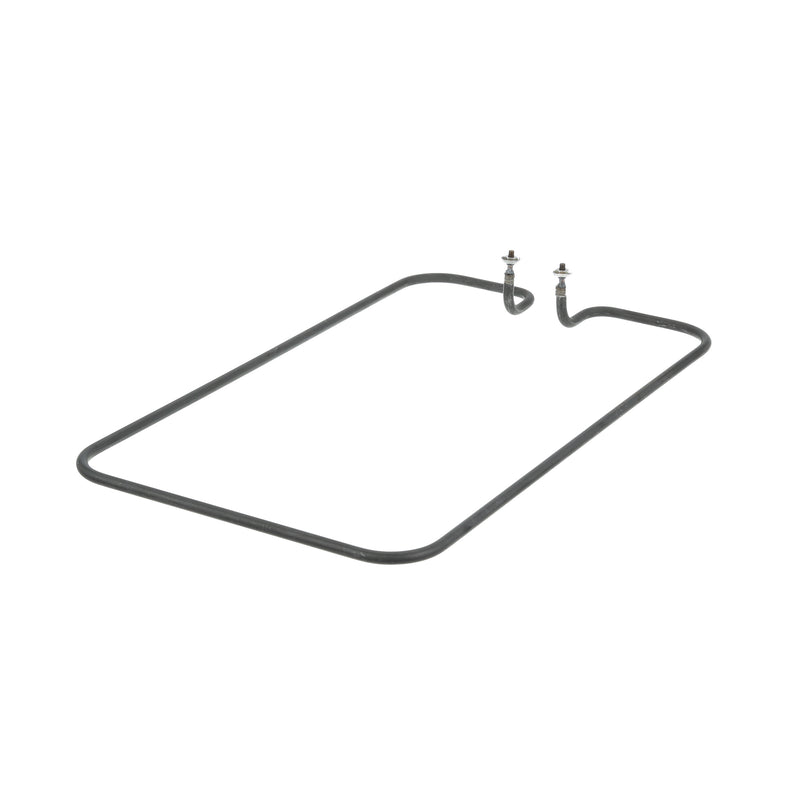

This 240V/1, 000W 18 3/4 in x 10 1/2 in Heating Element replaces Delfield 0156200. It converts electrical power into the heat the appliance needs to reach temperature. Replacement is usually called for when you are seeing slow or no heat-up, uneven cooking, or a breaker that trips when the heat circuit engages.
It also cross-references 4 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Well Element, 240V 1000W 1PH 18" X 10 1/2" Terminals Stud 10-32 Seco Steam Table. Warmer Dme & Portable Secomatics~ Multiple Well Built-ins: E(3,4,5 Or 6)DF2 & E(3,4,5 Or 6)DF4 & E(3,4,5 Or 6)DNT With S/n 675702 To 800000 1967-1980. Type V 3255, 3256, 3257.
Specifications
| Width (in) | 11 |
Cross-reference
- Delfield: 0156200, SEP90002
- Seco Select: 0156200, 892(240V)
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
