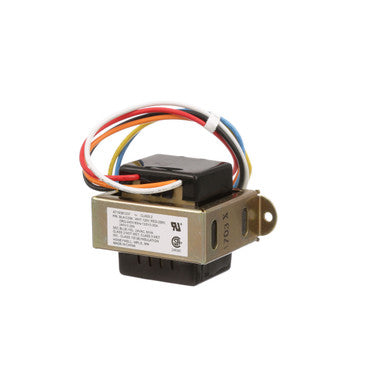

120/208-240V Transformer for Southbend – Replaces Southbend 1172277
120/208-240V Transformer for Southbend – Replaces Southbend 1172277
- Part type: Transformer
- Fits: Southbend
- Replaces: Southbend 1172277
- VA Rating (VA): 50
- Voltage (V AC): 120/208-240V
- Aftermarket replacement · ships fast · 30-day returns
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The 120/208-240V Transformer is a Mavrik aftermarket replacement part for Southbend equipment, built to meet the original equipment specification. Replaces Southbend 1172277.
Manufacturer detail
Transformer, primary BLK-COM., WHT-120V, RED-208V, ORG-240V, secondary BLUE-YEL, 24V, 50VA, exposed coil. 2 mount holes 3-1/8" mt ctrs, (6) 8" wires, Southbend marathoner sc models GB-12CCH, GB-12PC, GB-12RT, GB-12SC, GB-15CCH, GB-15PC, GB-15RT, GB-15SC, GB-22CCH, GB-22PC, GB-22RT, GB-22SC, GB-25CCH, GB-25PC, GB-25RT, GB-25SC, GS-12CCH, GS-12PC, GS-12RT, GS-12SC, GS-15CCH, GS-15PC, GS-15RT, GS-15SC, GS-22CCH, GS-22PC, GS-22RT, GS-22SC, GS-25CCH, GS-25PC, GS-25RT, GS-25SC,…
Specifications
| VA Rating (VA) | 50 |
|---|---|
| Voltage (V AC) | 120/208-240V |
| Length (in) | 3.5 |
| Width (in) | 2 |
| Height (in) | 2 |
| Sold As | Each |
Replaces these part numbers
- Southbend: 1172277
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- Match the specifications and the part number you are replacing against the table above. Send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
