115V Full Size Convection Oven Blower Motor for Garland – Replaces Garland 1686701
115V Full Size Convection Oven Blower Motor for Garland – Replaces Garland 1686701
- Part type: Motor
- Fits: Garland
- Listed fitment: 32 listed models
- Replaces: Garland 1686701
- Blade Type: Blower Wheel
- Center: 6-3/16 X 6-3/16 MTG. BRKT.
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
32 models· 1 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

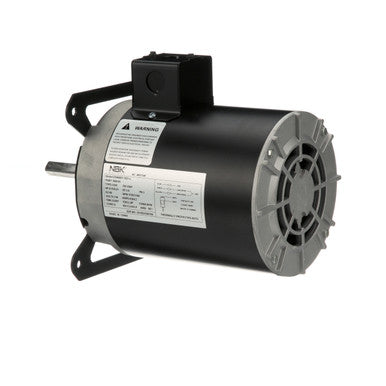

The 115V Full Size Convection Oven Blower Motor is a Mavrik aftermarket replacement part for Garland equipment, built to meet the original equipment specification. It is listed to fit 32 models across 1 manufacturer. Replaces Garland 1686701 and 4 other OEM part numbers.
Manufacturer detail
Blower motor, 2 speed. [ 115V, ] [ .75/.21 HP, ] [1PH ] [1725/1140 RPM ] [9.8/4.2 amp ] [CW rotation ] [ 3-3/4" x 5/8" shaft ] [ Y56Y frame ] [ 6-3/16" x 6-3/16" mtg. Brkt. ] qty 4 outside 5/16" holes, on each bracket 2 holes are 6-3/16" on centers and from bracket to bracket also 6-3/16" centers. Inside bracket mount studs are 3/16" studs and are spaced on 4" centers bracket to bracket and on each bracket they are spaced 4.097" Garland Oven mcogs, mcogd, icog, ecog, icog,.
Specifications
| Blade Type | Blower Wheel |
|---|---|
| Center | 6-3/16 X 6-3/16 MTG. BRKT. |
| Horsepower (HP) | .75/.21 |
| Rotation | CW |
| Size | Y56Y Frame |
| Voltage (V AC) | 115 |
| Length (in) | 15.25 |
| Width (in) | 11 |
| Height (in) | 11 |
| Sold As | Each |
Fits these models
- Garland: ECO-G-10, MCO-GD-10, MCO-GD-10-S, MCO-GD-20, MCO-GD-20-S, MCO-GS-10, MCO-GS-10-ESS, MCO-GS-10-S, MCO-GS-10ARBY, MCO-GS-20, MCO-GS-20-ESS, MCO-GS-20-S and 20 more
Replaces these part numbers
- Garland: 1686701, 1686711, 9001901, GL1686701, GL1686711
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 32 models across 1 manufacturer — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
