10" Butt-Weld Sanitary Dome Cap, T304 Stainless Unpolished (Wayland W416W-10-1)
$18081
10" Butt-Weld Sanitary Dome Cap, T304 Stainless Unpolished (Wayland W416W-10-1)
10" Butt-Weld Sanitary Dome Cap, T304 Stainless Unpolished (Wayland W416W-10-1)
In stock
$18081
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Size: 10" tube OD
- Connection: Butt-weld
- Shape: Domed end cap
- Material: T304 stainless steel
- Finish: Unpolished (16W-U)
- Standard: Sanitary tubing dimensions (OD-based, not NPS)
- Application: Brewery, dairy, food-processing process piping
- Brand: Wayland Industries
- MPN: W416W-10-1
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

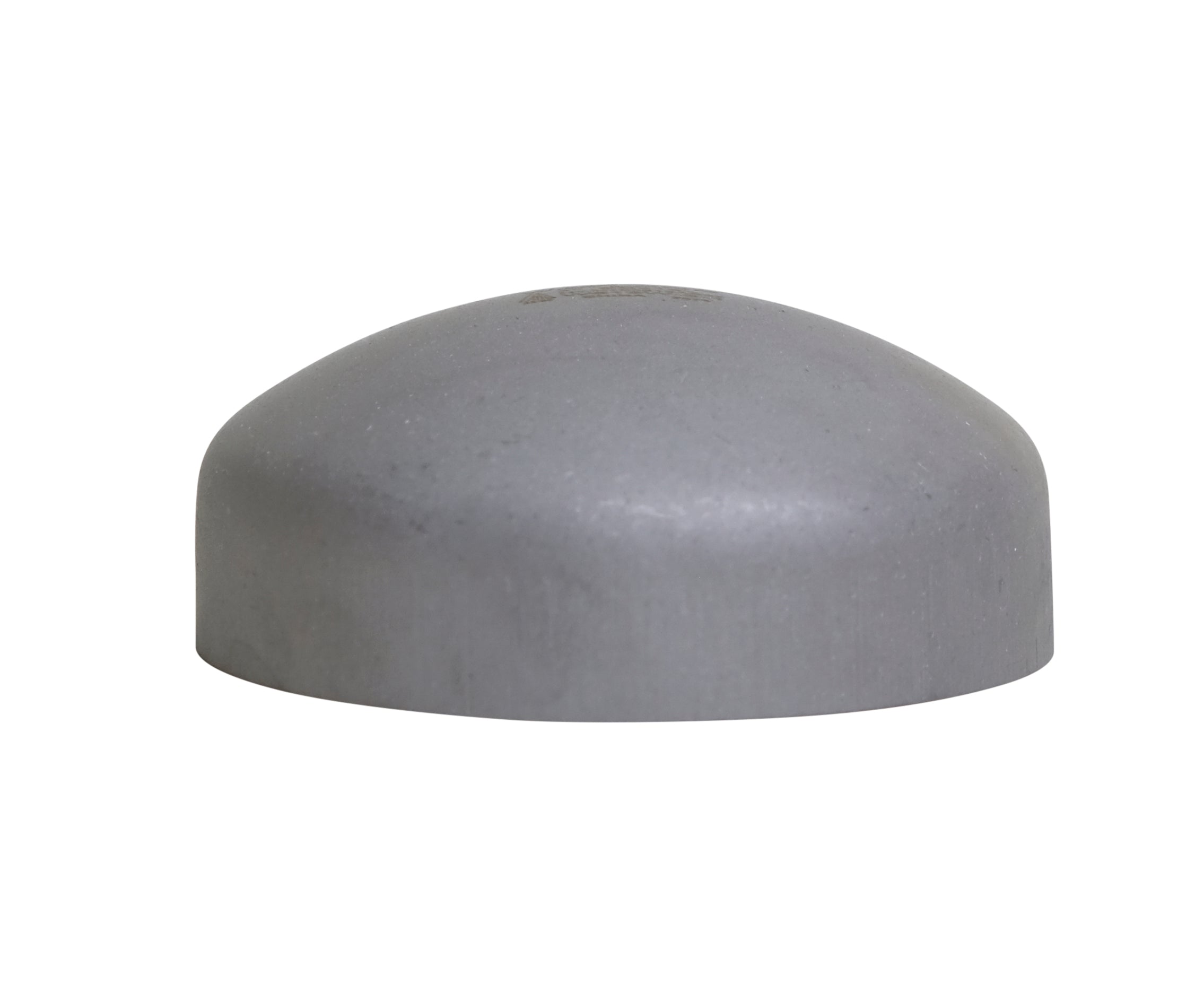

A 10-inch tube OD butt-weld dome cap in T304 stainless steel, unpolished (16W-U) finish. Used to close off the end of sanitary process piping in brewing, dairy, and food manufacturing applications. The domed shape eliminates flat-bottom dead pockets where product or CIP solution can pool, keeping the run fully drainable and sanitarily acceptable for 3-A and FDA-relevant installs.
Technician's Note: Match the OD of the cap exactly to the tube OD. Sanitary tubing is sized by OD, not nominal pipe size, and a 10" sanitary cap will not mate to a 10" Schedule 40 pipe. Use an orbital welder for the joint; stick or TIG welds without proper purge gas will sugar the inside of the joint and create crevice corrosion sites that fail food-grade inspection. Unpolished (16W) is appropriate for non-product-contact runs or for applications that will be electropolished after fabrication.
