1.5" Tri-Clamp Butterfly Valve - Spring-Return Pneumatic Actuator Normally Closed
$44895
1.5" Tri-Clamp Butterfly Valve - Spring-Return Pneumatic Actuator Normally Closed
1.5" Tri-Clamp Butterfly Valve - Spring-Return Pneumatic Actuator Normally Closed
In stock
$44895
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Size: 1.5" Tri-Clamp (TC).
- Actuator: Spring-Return Vertical Canister (Normally Closed).
- Material: T304 Stainless Steel.
- Seals: Food-Grade EPDM.
- Application: Automated liquid flow control.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

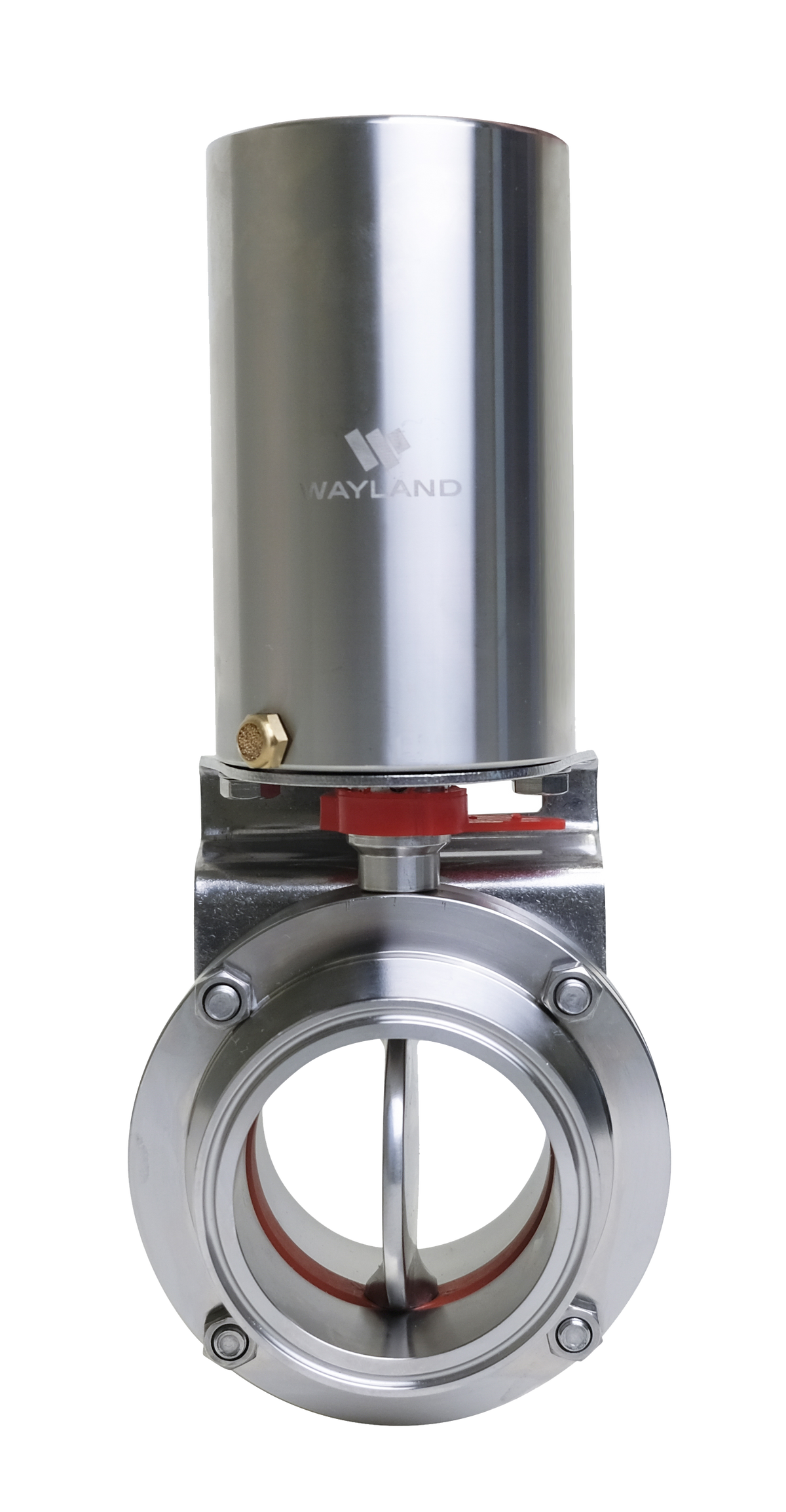

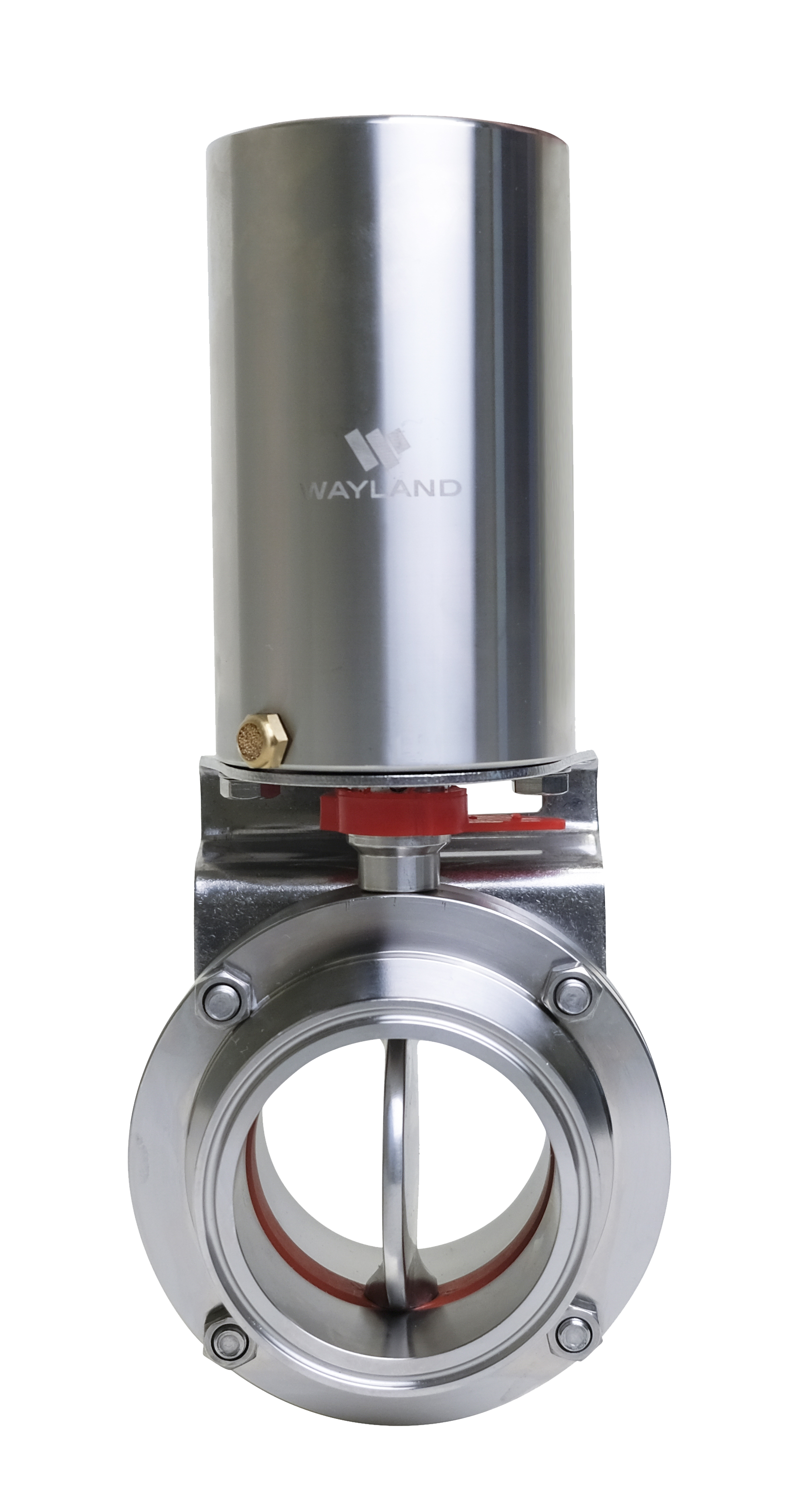

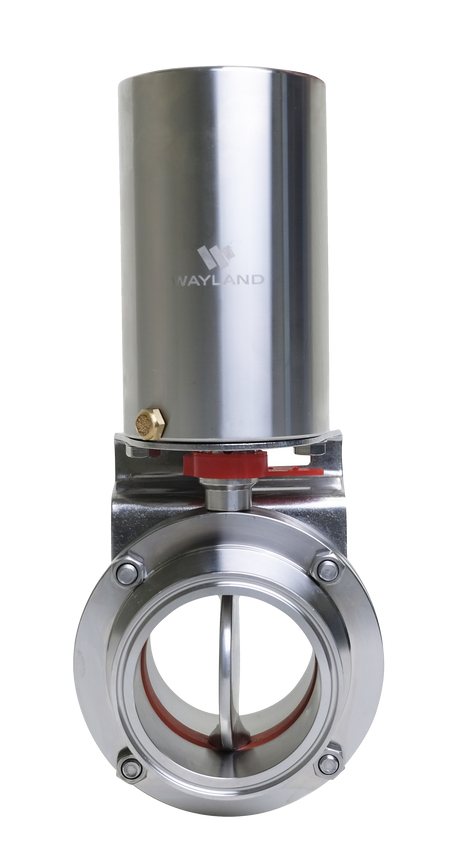

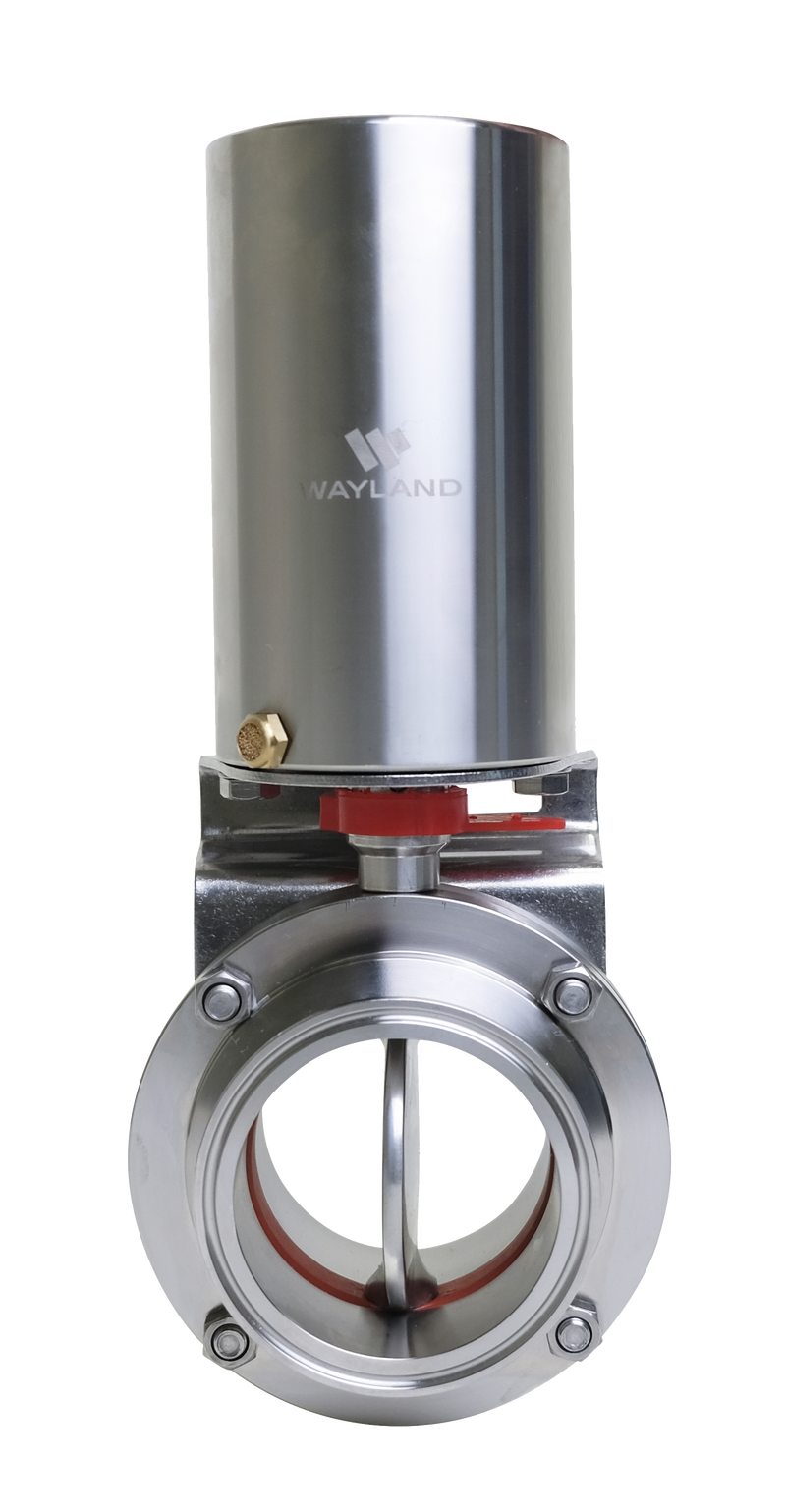

The Wayland Industries 1.5" Butterfly Valve with Spring-Return Actuator is a professional-grade sanitary component for automated brewery and food processing systems. This valve features a vertical canister actuator that is Normally Closed (NC); it uses air pressure to open and automatically returns to the closed position via spring tension if air pressure is lost. Constructed from 304 Stainless Steel with durable EPDM seals, it provides a sanitary and reliable solution for controlling liquid flow in pressurized lines.
Technician's Note: This pneumatic valve requires a regulated air supply (approx. 60-80 PSI) and a solenoid pilot valve for operation. Ensure the EPDM seal is lubricated with food-grade silicone grease before assembly to prevent friction damage during the automated cycles. The spring-return design is a critical fail-safe that prevents accidental tank drainage during power or air failures.
