Spaceman 6250-C Parts Diagram

All Spaceman parts →

Interactive exploded diagrams for the Spaceman 6250-C 2-flavor soft serve machine. Pick a section, then tap a number on the diagram or a row in the list to find the exact replacement part.

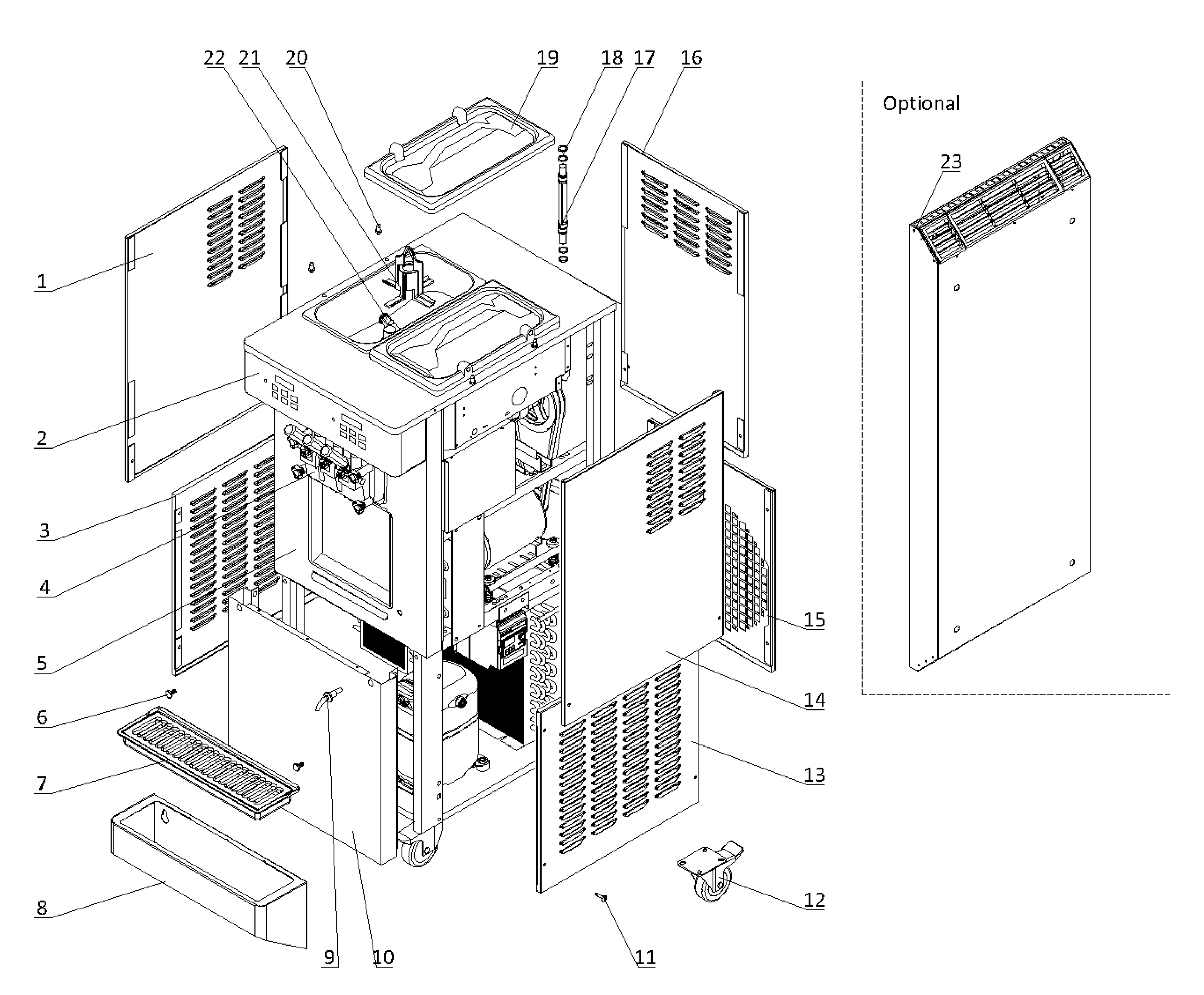

External Parts schematic

Click a numbered pin to view part details

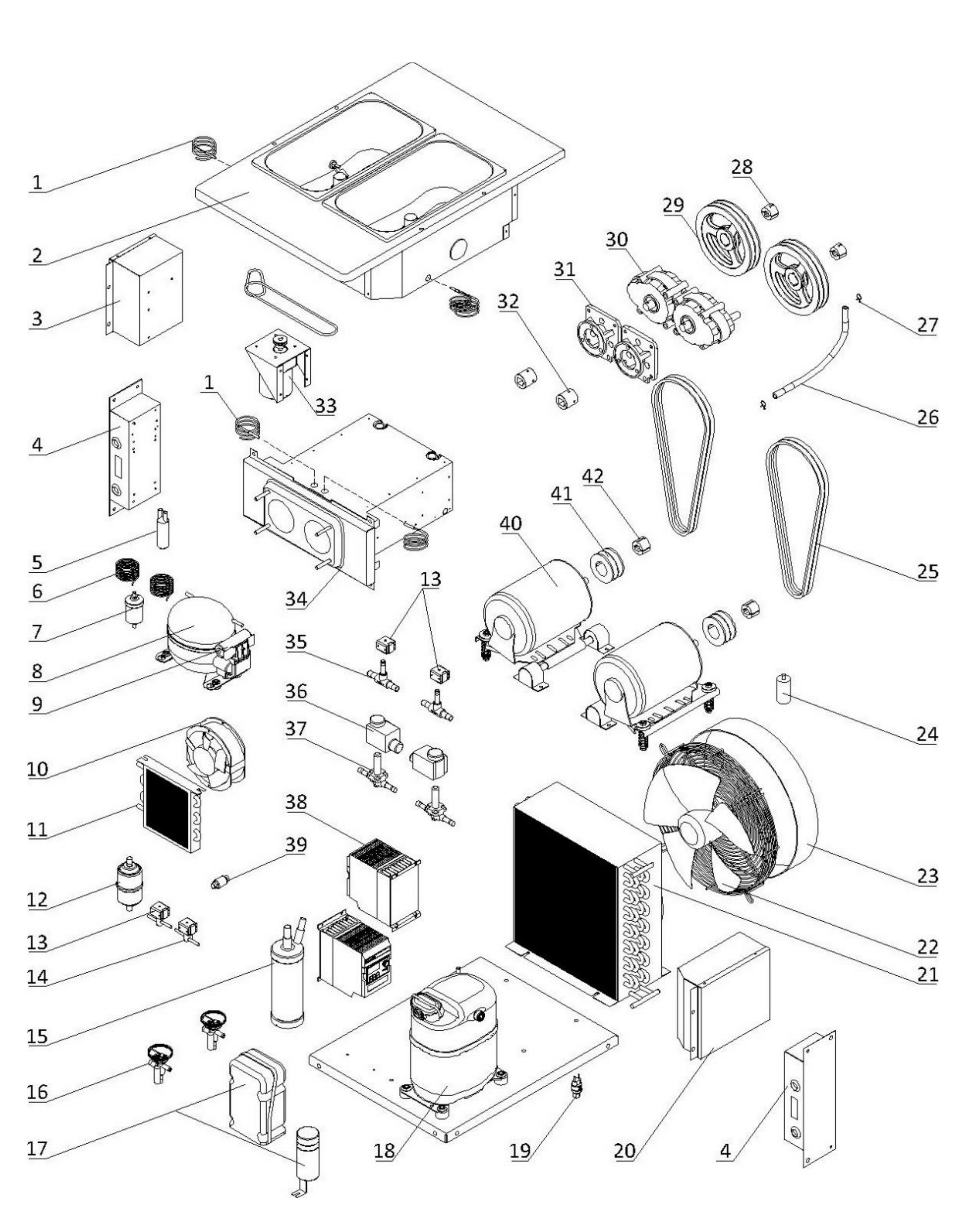

Internal Parts schematic

Click a numbered pin to view part details

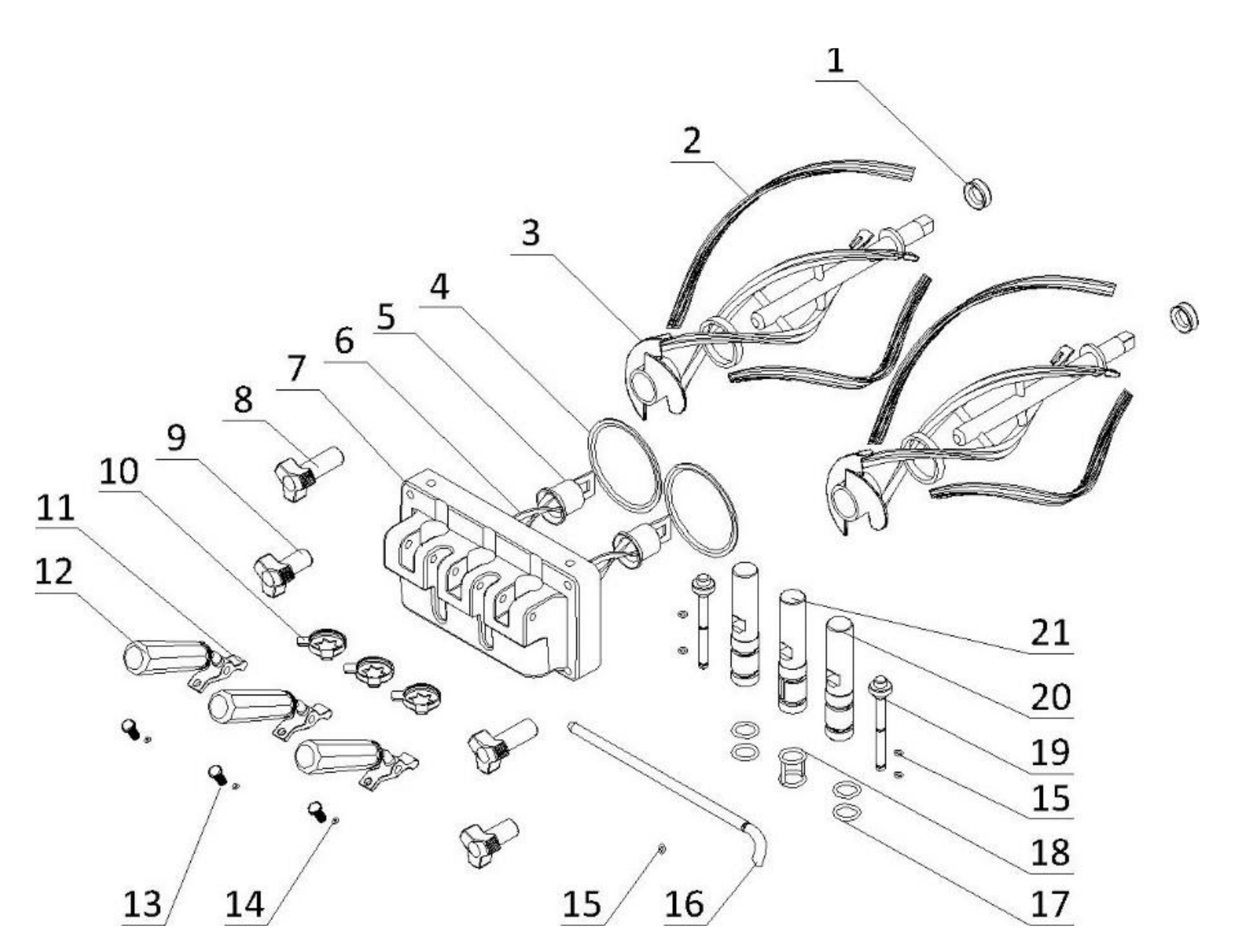

Dispensing Door & Beater schematic

Click a numbered pin to view part details

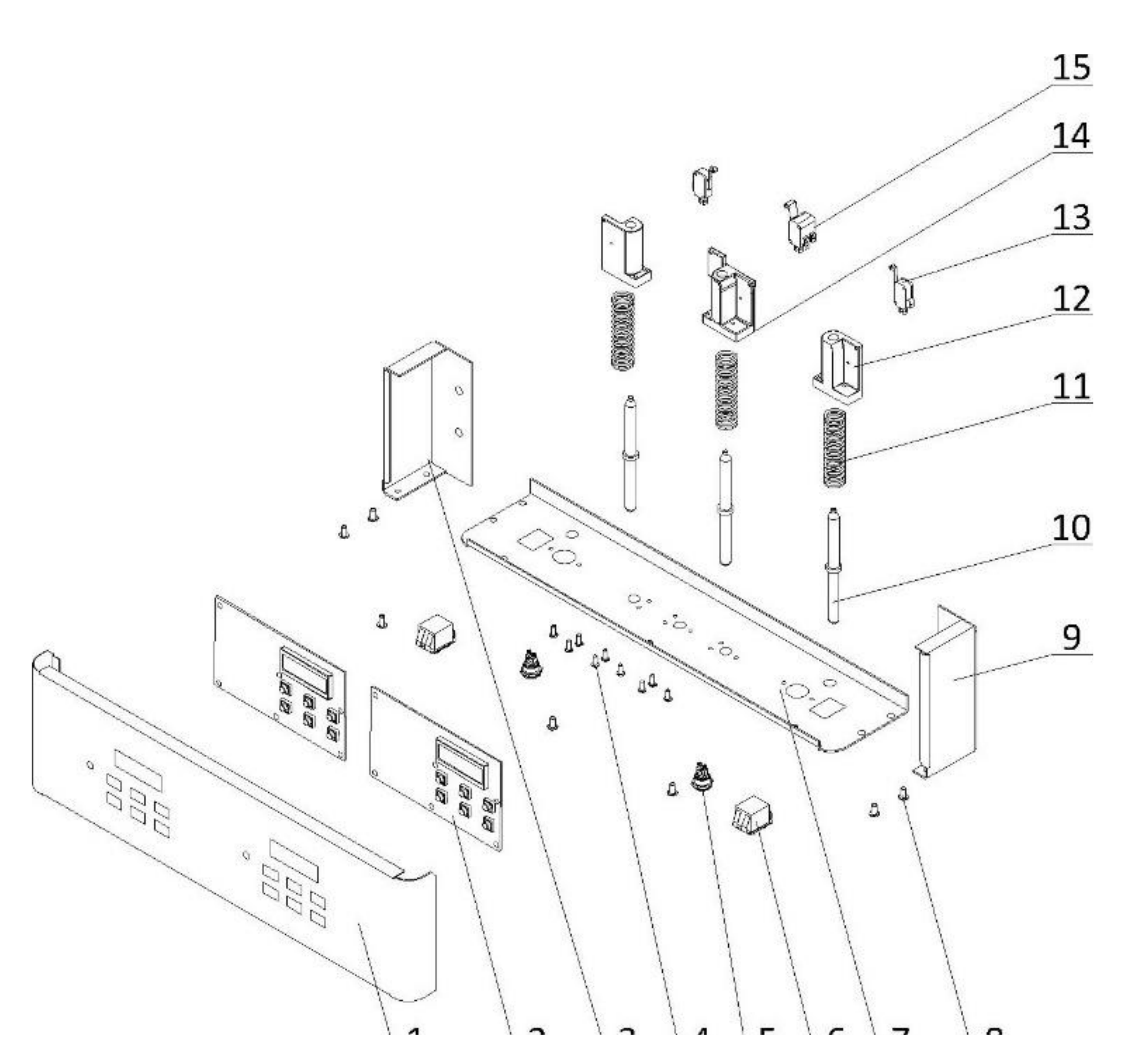

Draw Switch & Control Panel schematic

Click a numbered pin to view part details

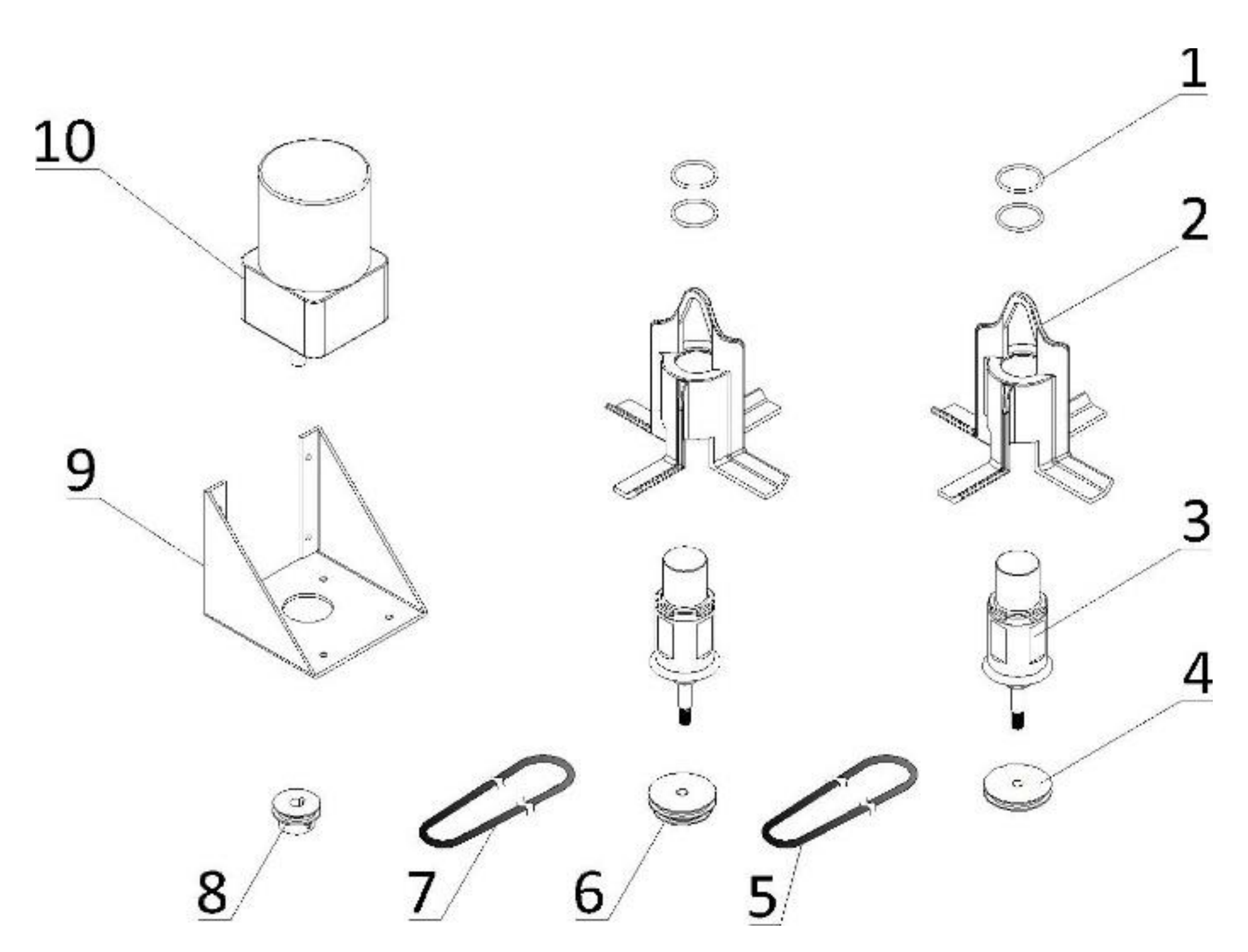

Hopper Agitator schematic

Click a numbered pin to view part details

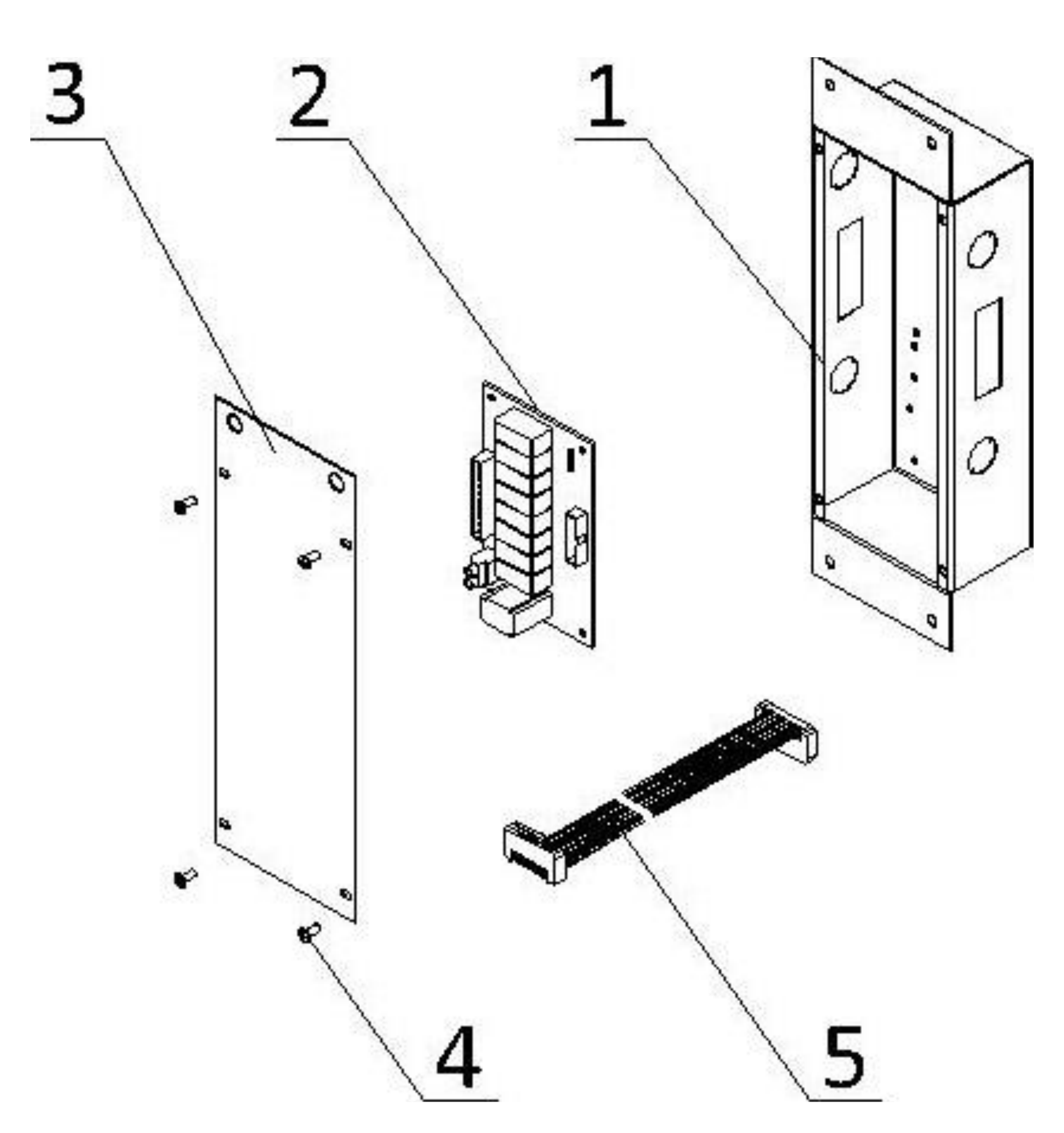

Control Box schematic

Click a numbered pin to view part details

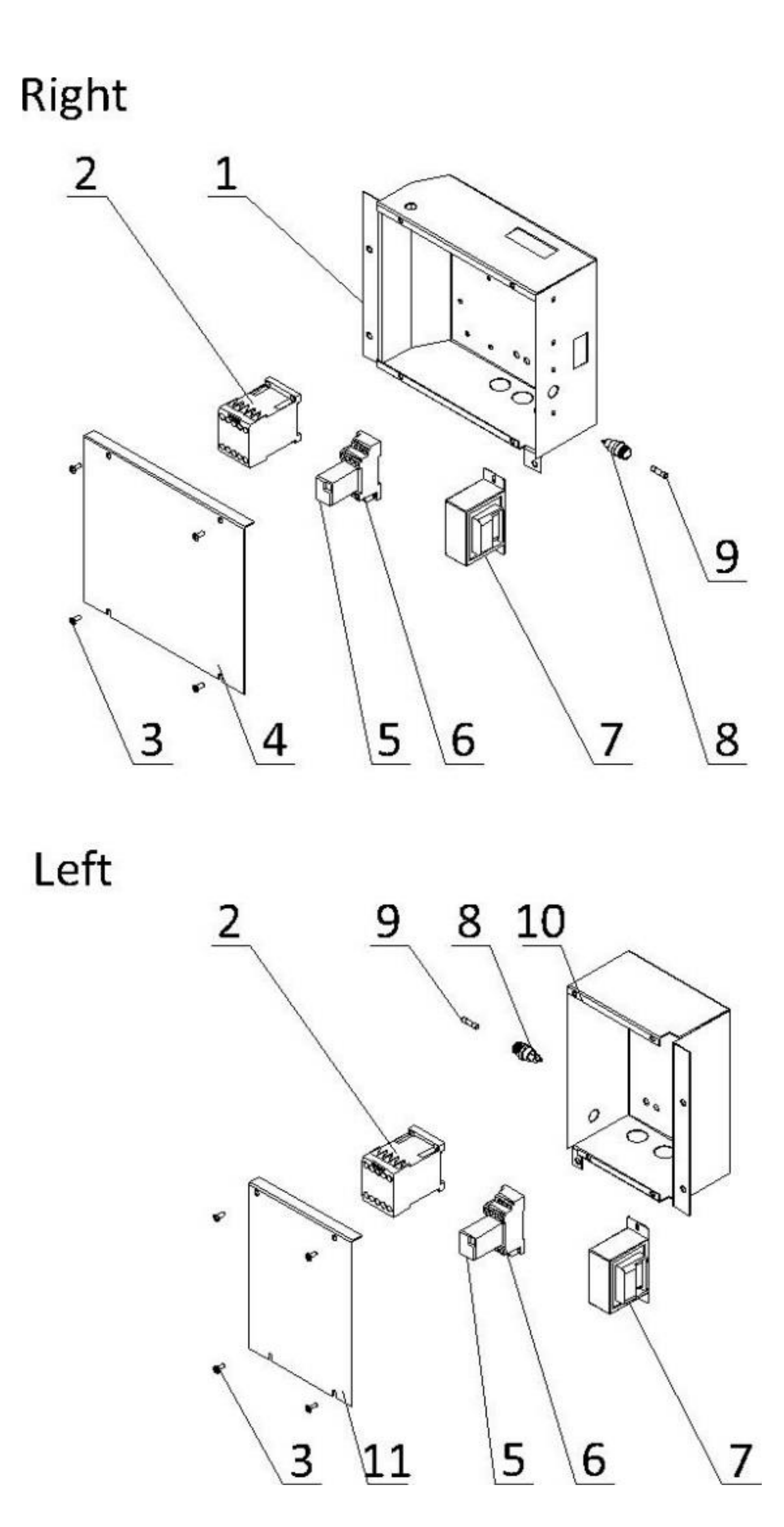

Electrical Box (L & R) schematic

Click a numbered pin to view part details
