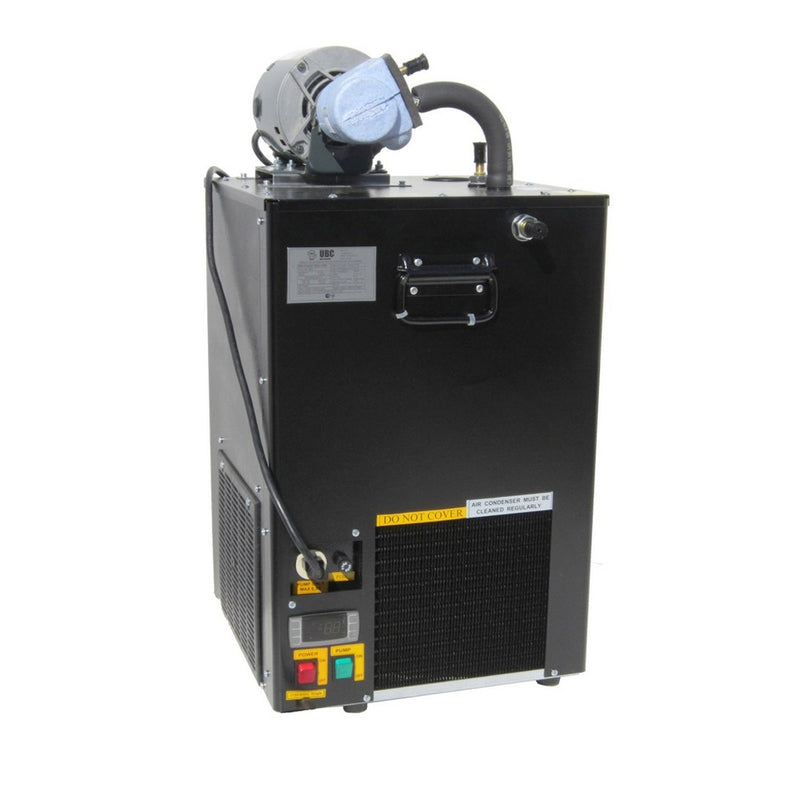

Glycol Beer Chiller - UBC ChillPro 3200V Power Pack, 1/3 HP 3,200 BTU Vertical Long-Draw Draft
Glycol Beer Chiller - UBC ChillPro 3200V Power Pack, 1/3 HP 3,200 BTU Vertical Long-Draw Draft
- BTU Rating: 3200 BTU/hr.
- Compressor: 1/3 HP.
- Pump Count: 1 (Single Pump Model).
- Distance: Rated for up to 75 ft runs.
- Voltage: 115V (Standard US Plug).
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
A glycol beer chiller (also called a glycol power pack) is the heart of a long-draw draft beer system. It chills a propylene-glycol and water bath and circulates it alongside the beer lines, holding every pour at serving temperature from the keg cooler to the faucet. The food-grade glycol never touches the beer.
The UBC ChillPro 3200V delivers 3,200 BTU of cooling from a 1/3 HP compressor with single-pump circulation, in a compact vertical cabinet built for commercial long-draw draft systems with a small floor footprint.
Specifications
- Cooling capacity: 3,200 BTU
- Compressor: 1/3 HP
- Pumps: 1
- Cabinet: vertical
- Cooling agent: food-grade propylene glycol
Sizing and setup
As a rule of thumb, plan for roughly 3/4 HP per 100 ft of insulated trunk-line run, adding headroom for high tap counts or hot mechanical rooms. Mix the bath with food-grade propylene glycol and distilled water per the manufacturer manual. Not sure which chiller fits your run length and tap count? Talk to a specialist and we'll size it with you.
