Stainless Steel Hot Liquor Tanks
Earn 239 points on this item.

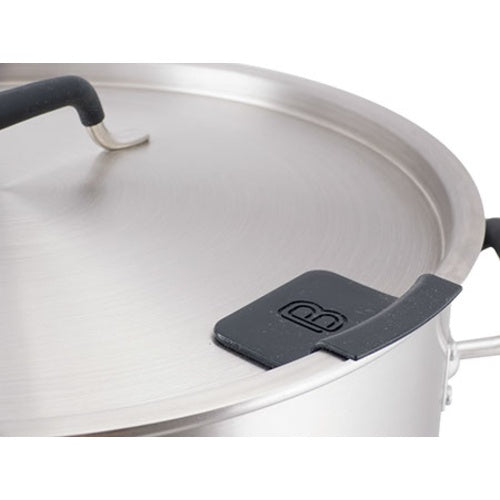

Designed for Brewing. Built to Last. The new line of Brewbuilt kettles, made from 304 stainless steel, offers an unparalleled mix of features for the price. At the very top of the list are two welded-in place couplers that offer a lifetime of leak free use. As you can imagine, welding in a coupler costs more than punching a hole and using a gasketed (ie weld-less) fitting. Welded fittings offer a permanent connection that to us is worth every penny. The second unique feature that we absolutely love about these kettles is the notched lid with silicone plug. This notch allows you so much flexibility; you can use an immersion chiller, one of our Ultimate Sparge Arms for mashing, tie off hop bags, take a temp reading during cooling, or whatever else we all can dream up.

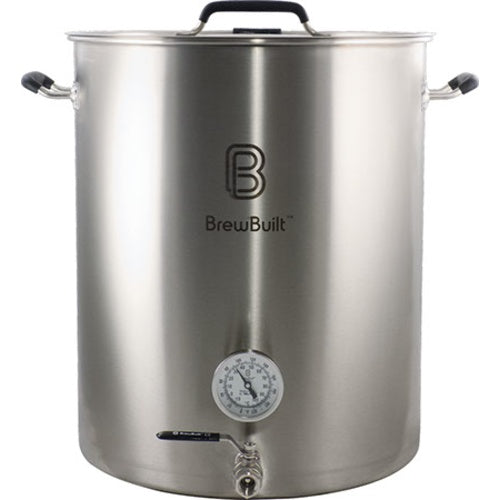

The BrewBuilt HLT
Boasting all the features of the BrewBuilt Kettle line, then topping that off with a BrewBuilt branded TelTru BiMetal thermometer, and a SS maximizer.
This Kettle has a lot to offer...

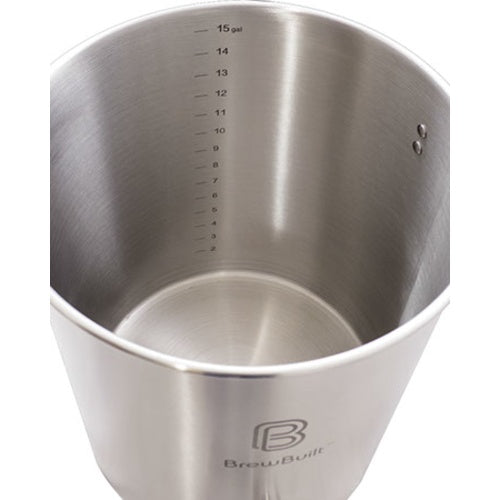

Some other features we dig include the internal volume markers from the bottom to the top - so handy for instant reads. The silicone sleeved handles on the kettle and the lid are a cool feature to protect your hands. The tri-clad bottom with a 4mm core of aluminum sandwiched between two layers of stainless steel offers even heat distribution during the boil and also makes it a perfect choice for anyone wanting to use an induction burner. The bottom coupler is also cool with 1/2" male threads on the outside and 1/2'' female threads on the inside. Those internal threads are so handy... you can easily install a pick up tube, stainless quick disconnects, a kettle screen, or any other fitting that features 1/2" MPT threads.
Beefy 304 Stainless
These kettles are made from 304 grade stainless. That means you will have less corrosion issues than with a kettle made from lower grade 201 type stainless. We put these kettles through a corrosive salt water test in the shop and they passed with flying colors. We also made sure the rivets and riveted handles were also made of stainless steel for a long term, trouble free life. The 10 and 15 gallon size are made from 1.0mm thick stainless steel. The 22 and 31 gallon size are made with 1.2mm stainless - that's pretty thick stuff - and you will know it when you pick one up. The included ball valve is a two piece design that allows for easy cleaning (we prefer these over 3 piece for ease of assembly) and is also made from 304 stainless.
Size Ratios and stuff
All the Brewbuilt kettles follow the recent trend to a 1.2:1 ratio where the height is 1.2 times the diameter. This is a proven commercial ratio that has been adopted in homebrewing to achieve a more consistent 10% evaporation rate during the boil. We do like this ratio for boilling. For Mashing we would prefer a little bit shallower but that is a small compromise. Dimensions for a hot-liquor tank, if you are thinking brewing system down the road, are irrelevant as any ratio kettle will do.
Unique 22 Gallon Size
This size was born from customer feedback. Many customers making 10 gallons actually want to end up with 10 gallons at the end of kegging. That means you can be starting a boil with 13-14 gallons of wort to account for boil off, kettle loss, and fermenter loss. The 22 Gallon size kettle allows you to boil those quantities with plenty of room for boil overs. Want to make a 15 gallon batch with friends... you can squeeze that in to! You'll never regret having a little extra kettle.
With welded fittings, a bunch of cool features, and a solid, thick 304 stainless steel core this kettle is a pretty amazing value. There are a host of accessories that are available including a trick false bottom for mashing, a whirlpool arm for recirculating, and more.
Features List at a Glance
- Two welded couplers for a lifetime of leak free use
- Notched lid with silicone plug for flexibility
- 304 Stainless construction for longevity
- 1.0mm (10,15 gal) or 1.2mm (22,31 gal) thick side walls resists denting
- 4mm Tri-Clad Aluminum bottom sandwiched between two layers of stainless steel for no scorching
- 1/2" FPT internal threads for attaching various kettle fittings
- Internally etched volume markers from top to bottom for easy reading
- Silicone coated handles for heat protection
- 1.2:1 Ratio is optimal for boiling evaporation rate
- Two piece, 304 stainless ball-valve for easy cleaning
- Lid is designed to conveniently hang from a handle
- Stainless handles with stainless rivets for secure lifting
- 1/2" MPT stainless plug and plumbers tape included for thermometer port
|SKU||Size||Kettle ID (in.)||Height (in.)|
